Amiga 3000 "ZIP2SIMM" PS2 to ZIP RAM adapter PCB

Amiga 3000 "ZIP2SIMM" PS2 to ZIP RAM adapter PCB

$5.00 USD
$5.00 USD
Sale Sold out

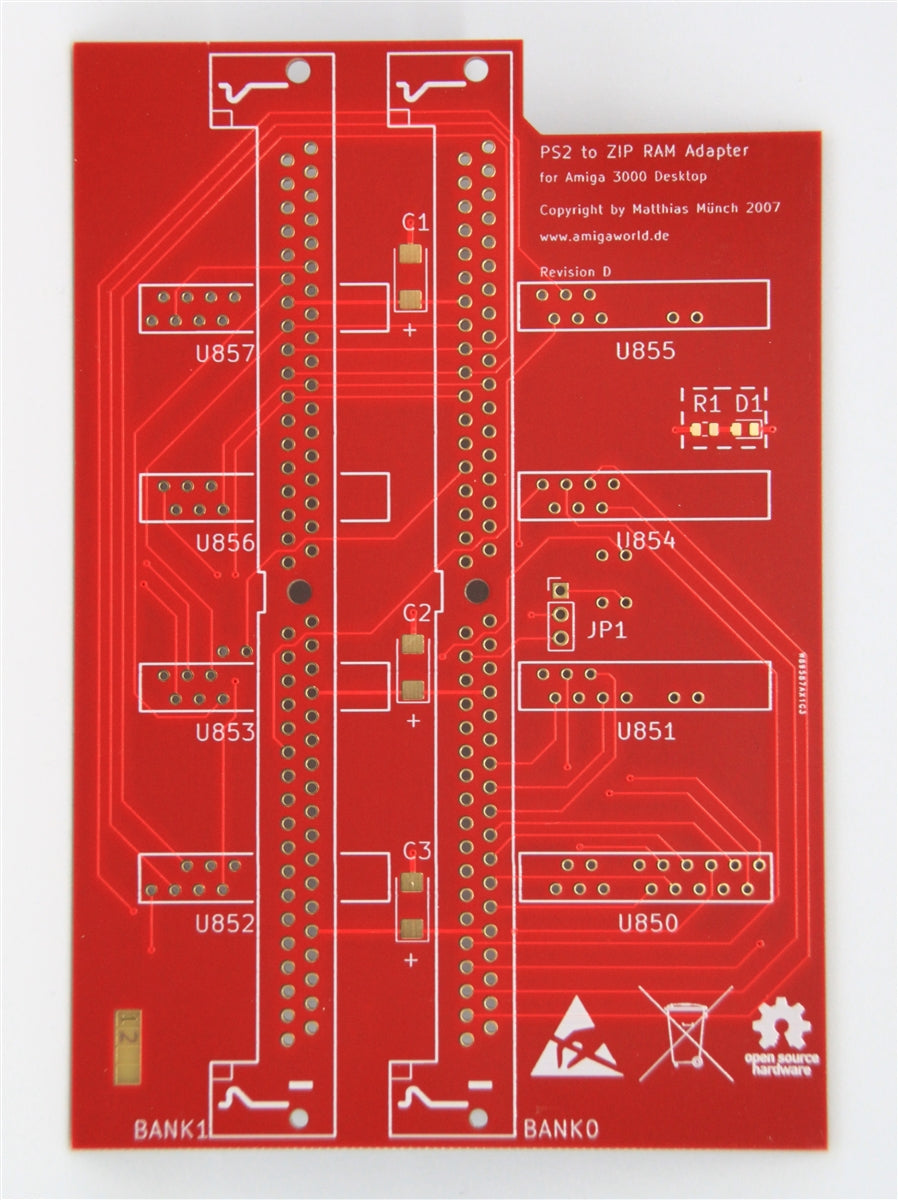

Bare Printed Circuit board, allowing you to replace the legacy ZIP memory with standard PC/PS2 style 72 pin SIMMs.

Red PCB, Gold ENIG electroplating. Bill of materials/required components (which are not included with the PCB):
Description Quantity Footprint Location/Designator
PS / 2 SIMM socket, 72-pin, angled 2 Bank0, Bank1
Pin header, 1 × 3-pin, pitch 2.54 mm, straight 1 JP1
SMD resistor, 0805, 150 Ohm, 16V 1 R1
SMD-LED, 2012 (0805), red 1 D1
SMD tantalum capacitor, type C, 10µF, 16V 3 C1,C2,C3
IC adapter pins, Ø 0.45 mm, pitch 2.54 mm 73 N/A
Open Source Hardware, courtesy of Matthias Münch. Produced under commercial license granted by Matthias.

See https://www.amigaworld.de/hardware/amiga-3000-simm-zip-ram-adapter/
