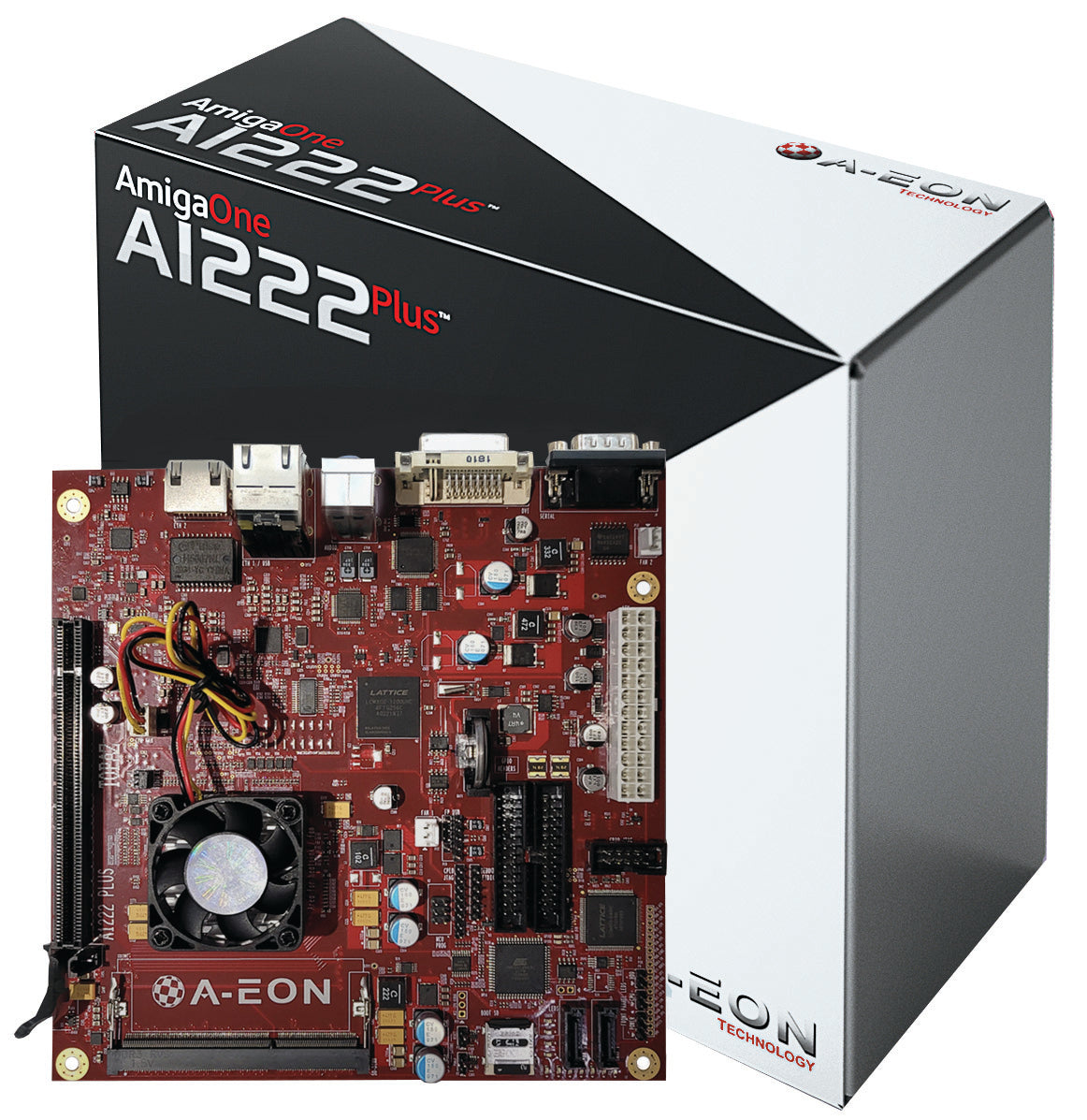

AmigaOne A1222+

A-EON Technology's A1222+ Motherboard with:

* Enhancer Software V2.2
* Emergency Boot USB Recovery stick
* OS4.1 Digital Licence
* Printed Quickstart Guide
* 4GB DDR3 SO-DIMM Memory

Product Specifications:

A1222 Plus is a Power architecture motherboard based around the QorIQ P1022 CPU.
Power CPU: NXP QorIQ P1022, 1.2GHz, 32-bit, e500V2, dual-core
DDR3 SODIMM socket - 400MHz 64 bit interface - Supports up to 8GB RAM
SATA - 2x SATA 2.6 compliant controllers
USB - 2x External & 2x Internal USB port
Ethernet - 1x RGMII ethernet PHYs each providing Gbit ethernet
Audio CODEC generating stereo audio out from I2S digital audio
PCIe - x4 PCIe gen 1 link allows data rates of 2.5Gb/s per lane
x16 PCIe compatible connector to support Radeon RX graphics cards
DVI LCD Interface - 24 bit colour depth
Support for resolution up to 1280x1024 (no 3D, no 2D acceleration)
HDMI 1.3 support
GPIO - Support for user GPIOs & GPIO JTAG
MicroSD - MicroSD card for ROM
RS232 Serial - 1x RS232 including flow control - Maximum baud rate of 230,400

Pin headers for Power, CPU, HDD
WCU Prog
Also includes 1x CPU fan + heatsink
2x fan ports
