Rabbit Hole Computing
ZuluSCSI Blaster - An RP2350B-based SCSI emulator
ZuluSCSI Blaster - An RP2350B-based SCSI emulator
Regular price
$69.00 USD
Regular price
Sale price
$69.00 USD
Unit price
/
per
Couldn't load pickup availability
New for 2025, ZuluSCSI Blaster is an advanced SCSI storage emulator and is powered by the Raspberry Pi Foundation's RP2350B microcontroller.
ZuluSCSI is easy to use: Simply place an appropriately-named disk image or CD-ROM ISO on your SD card in order to present it for use by your SCSI host system. ZuluSCSI can emulate up to 7 SCSI devices simultaneously at any time, and supports both FAT and ExFAT-formatted (for images greater than 4GB in size) SD cards
ZuluSCSI Blaster supports synchronous and asynchronous SCSI transfers, with read speeds up to 18 megabytes/second. A sufficiently-fast SD card and SCSI controller with Ultra SCSI support is required to achieve maximum throughput.
New ZuluSCSI Blaster features
- USB-C connector
- 16-bit stereo CD Audio playback emulation (requires optional plug-in DAC board)
- Expansion header with six GPIOs for future add-on functionality.
- Up to 18 megabytes per second read, 11 megabytes per second write.
ZuluSCSI firmware is open-source, and GPLv3-licensed.

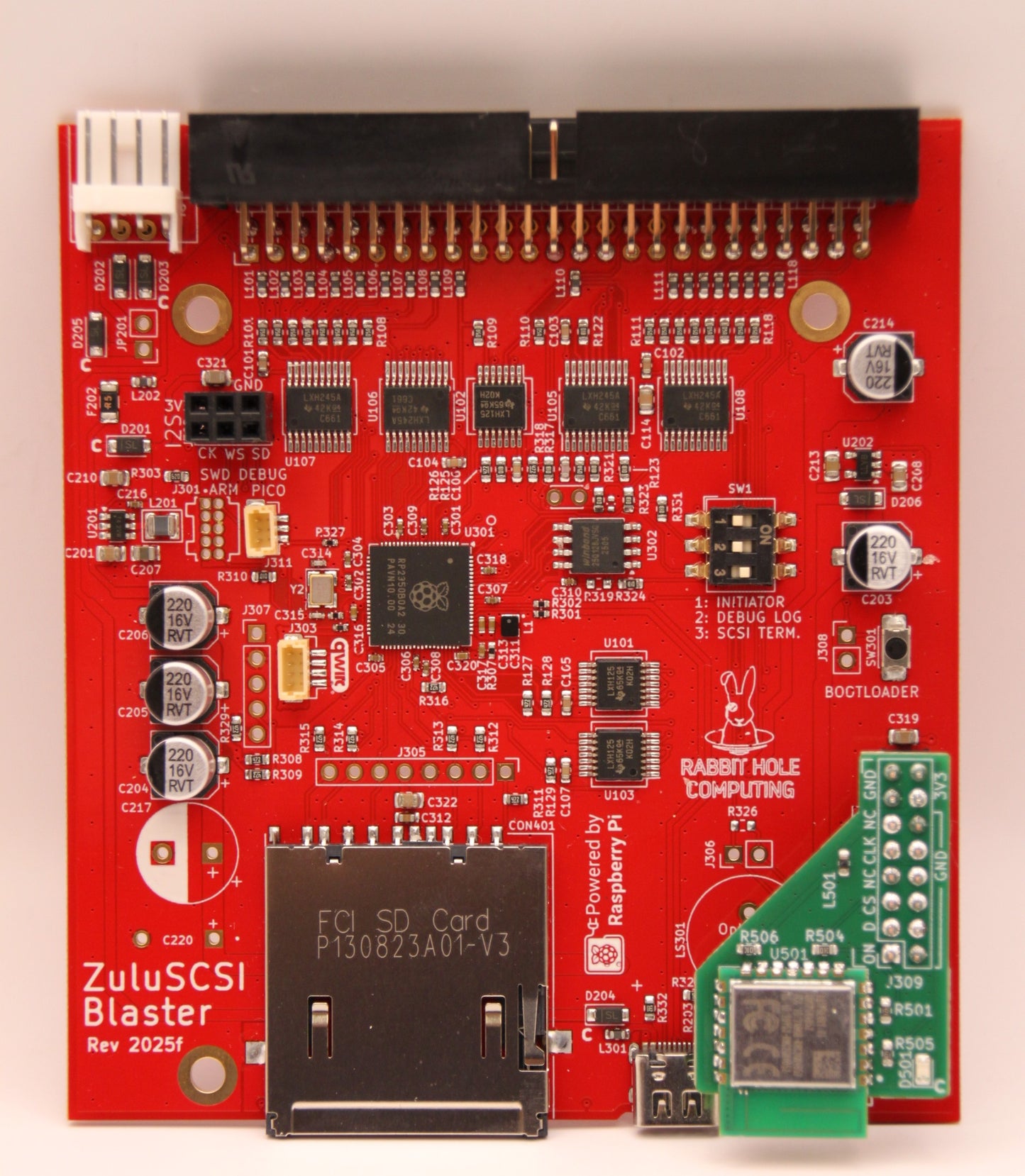

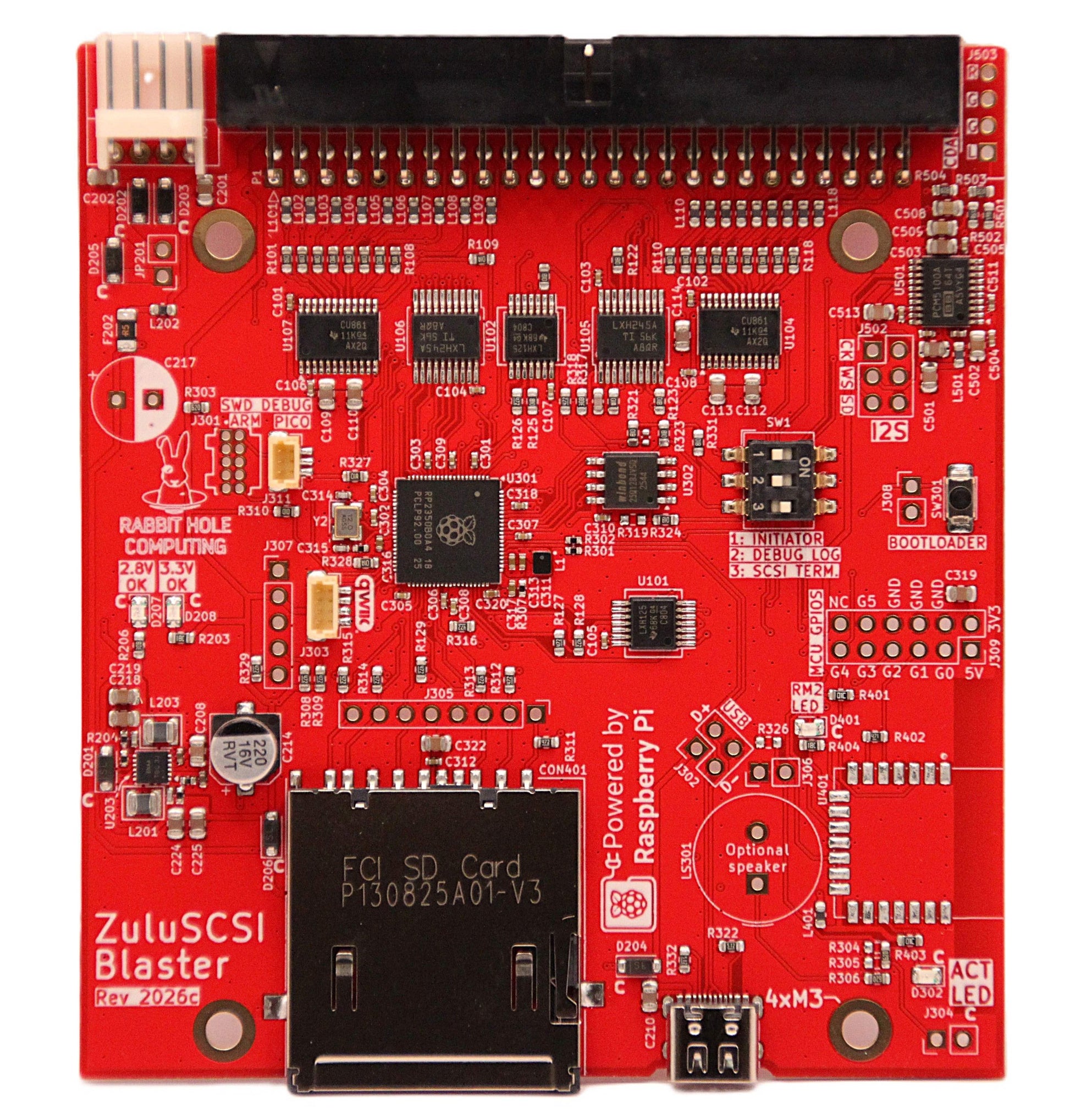

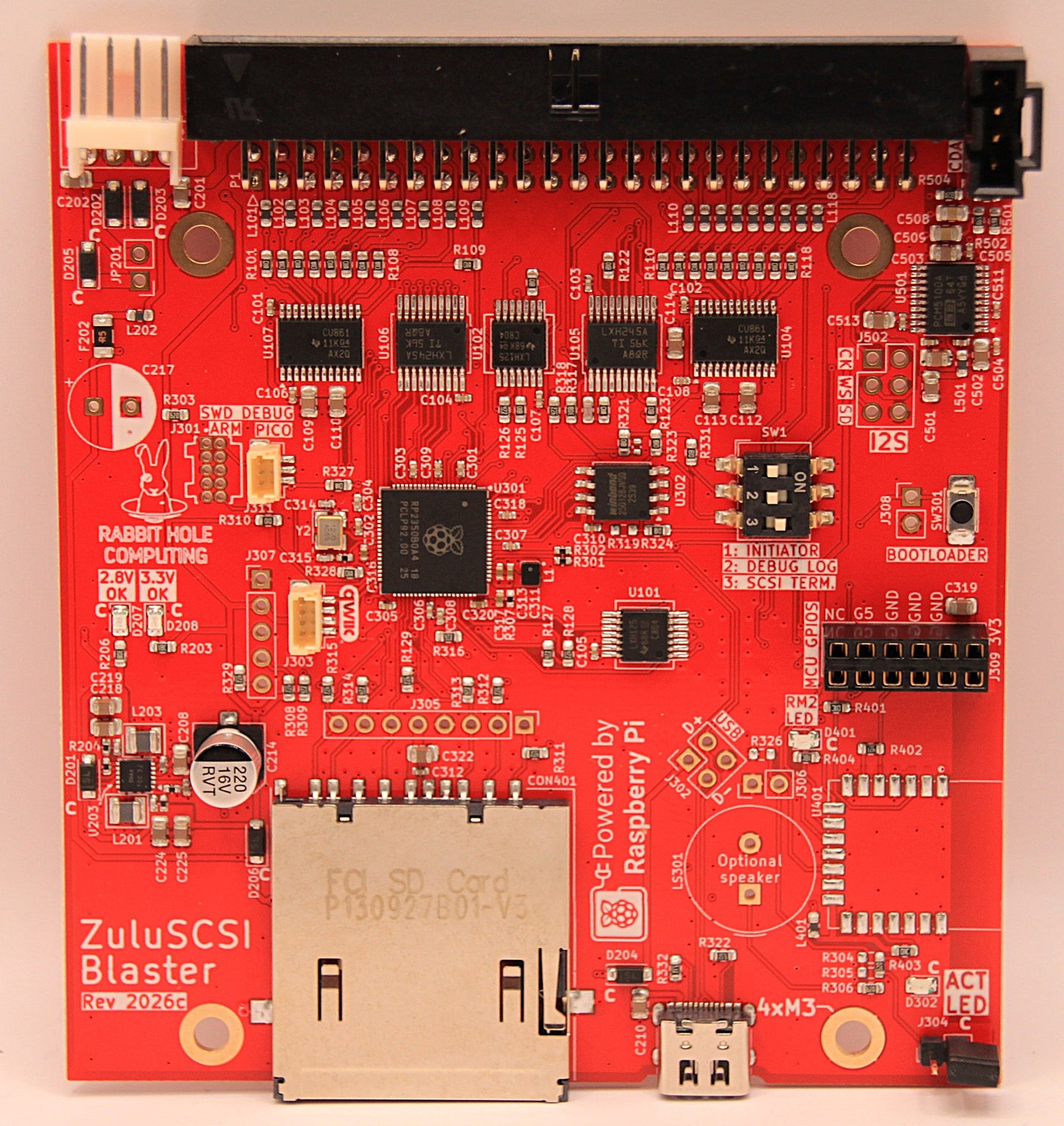

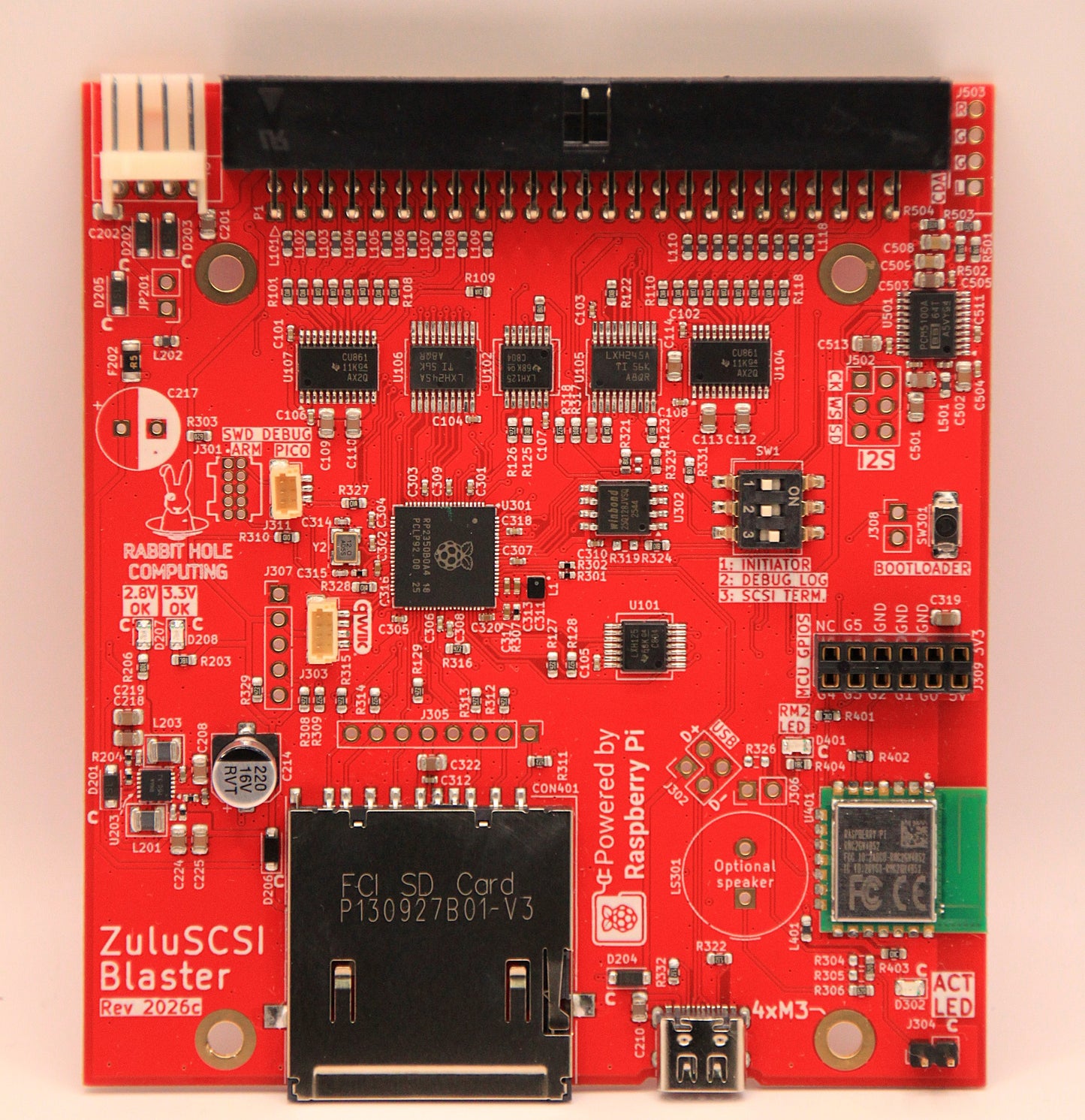

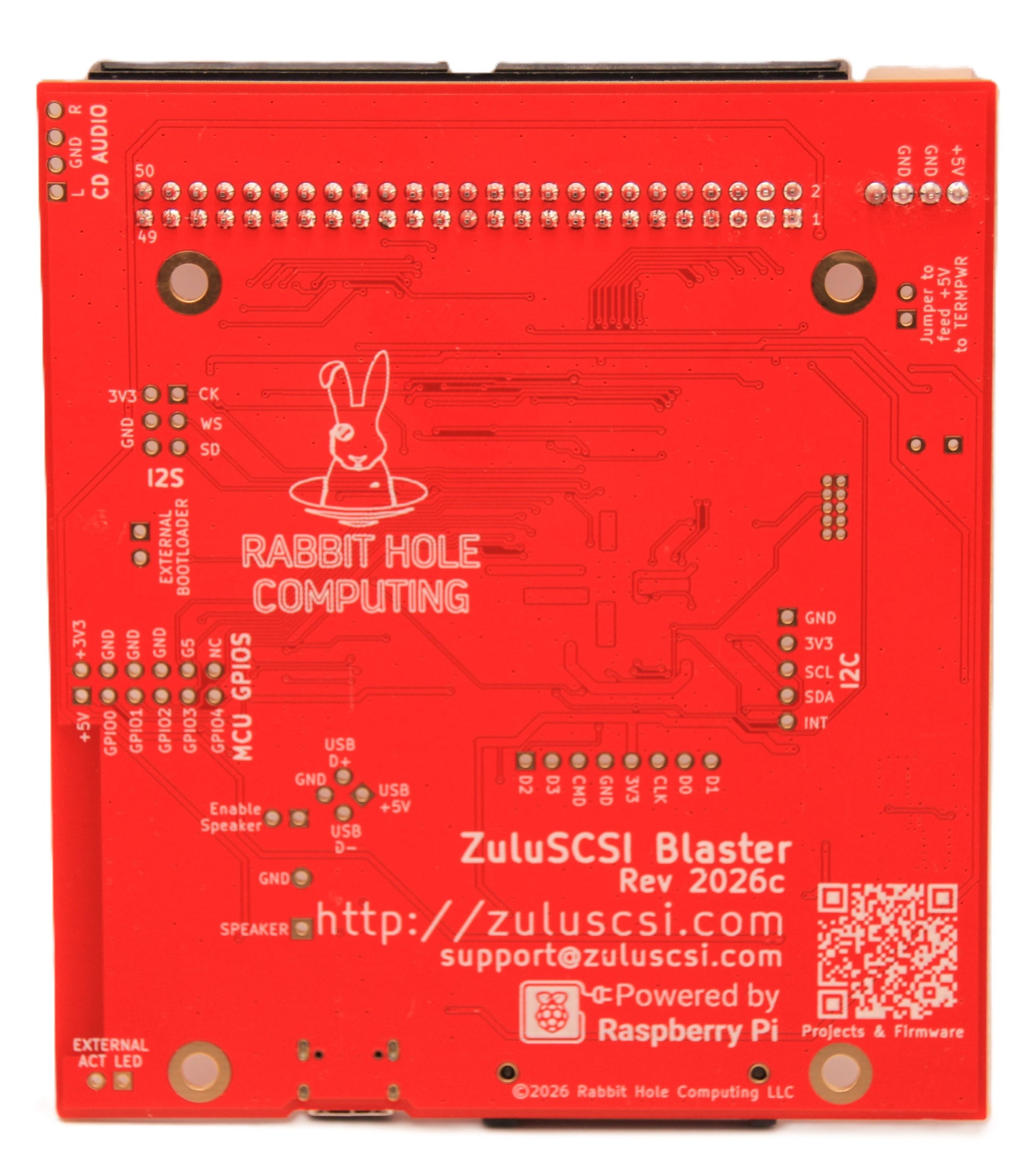

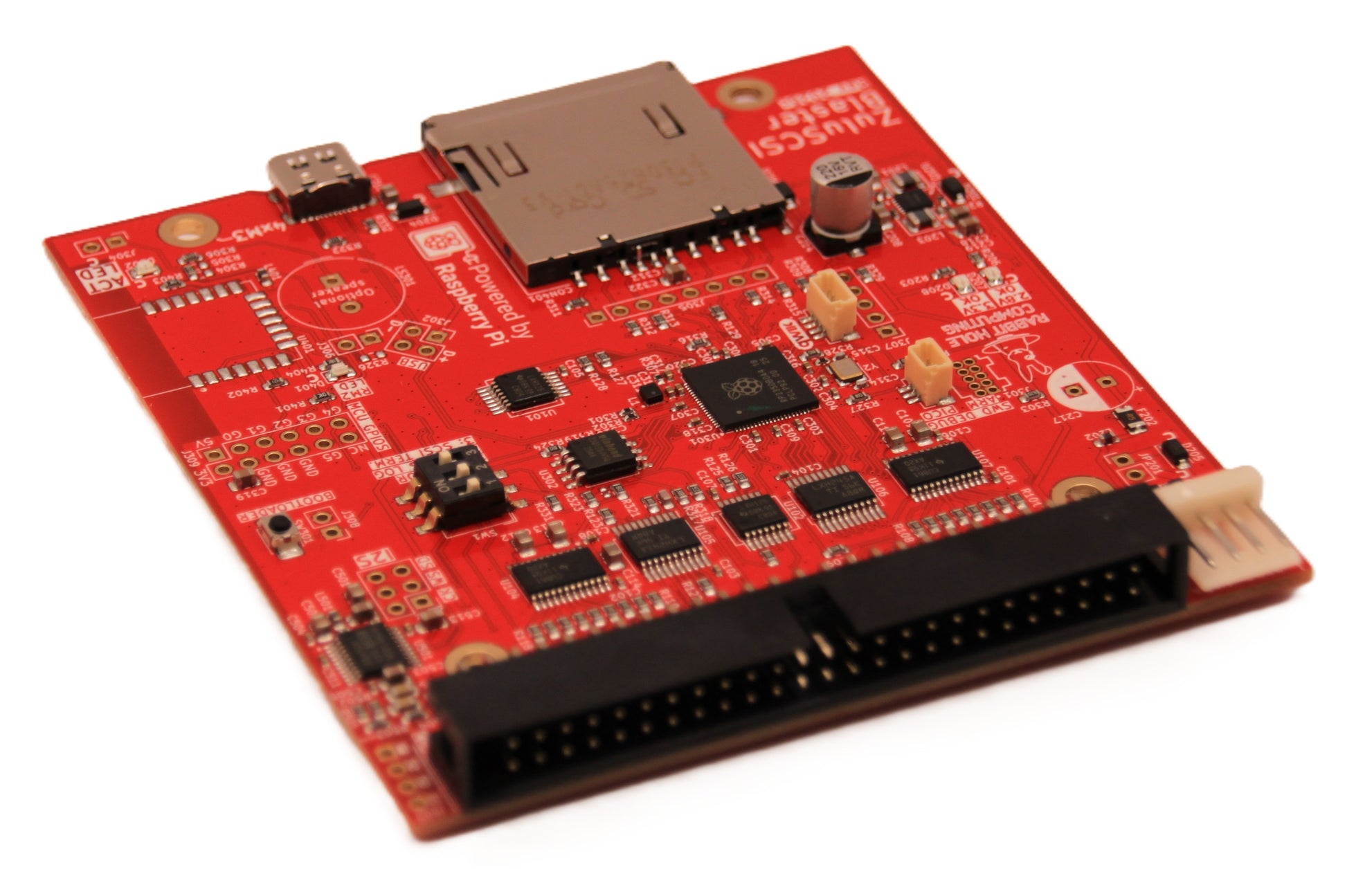

Board dimensions: 90mm by 100mm. The four M3-sized mounting hole dimensions are identical to those found on the bottom of any 2.5" hard drive, meaning you can use most commodity 2.5" to 3.5" mounting brackets/adapters to mount your ZuluSCSI.
ZuluSCSI Blaster board dimensions are identical to that of SCSI2SD V5.1/V5.2/V6.
All mounting solutions designed for SCSI2SD V5.1/V5.2/V6 work just as well with ZuluSCSI.
All mounting solutions designed for SCSI2SD V5.1/V5.2/V6 work just as well with ZuluSCSI.
