Rabbit Hole Computing
ZuluSCSI Compact RP2040 (SCA)
ZuluSCSI Compact RP2040 (SCA)
Regular price
$69.00 USD
Regular price
Sale price
$69.00 USD
Unit price
/
per
Couldn't load pickup availability

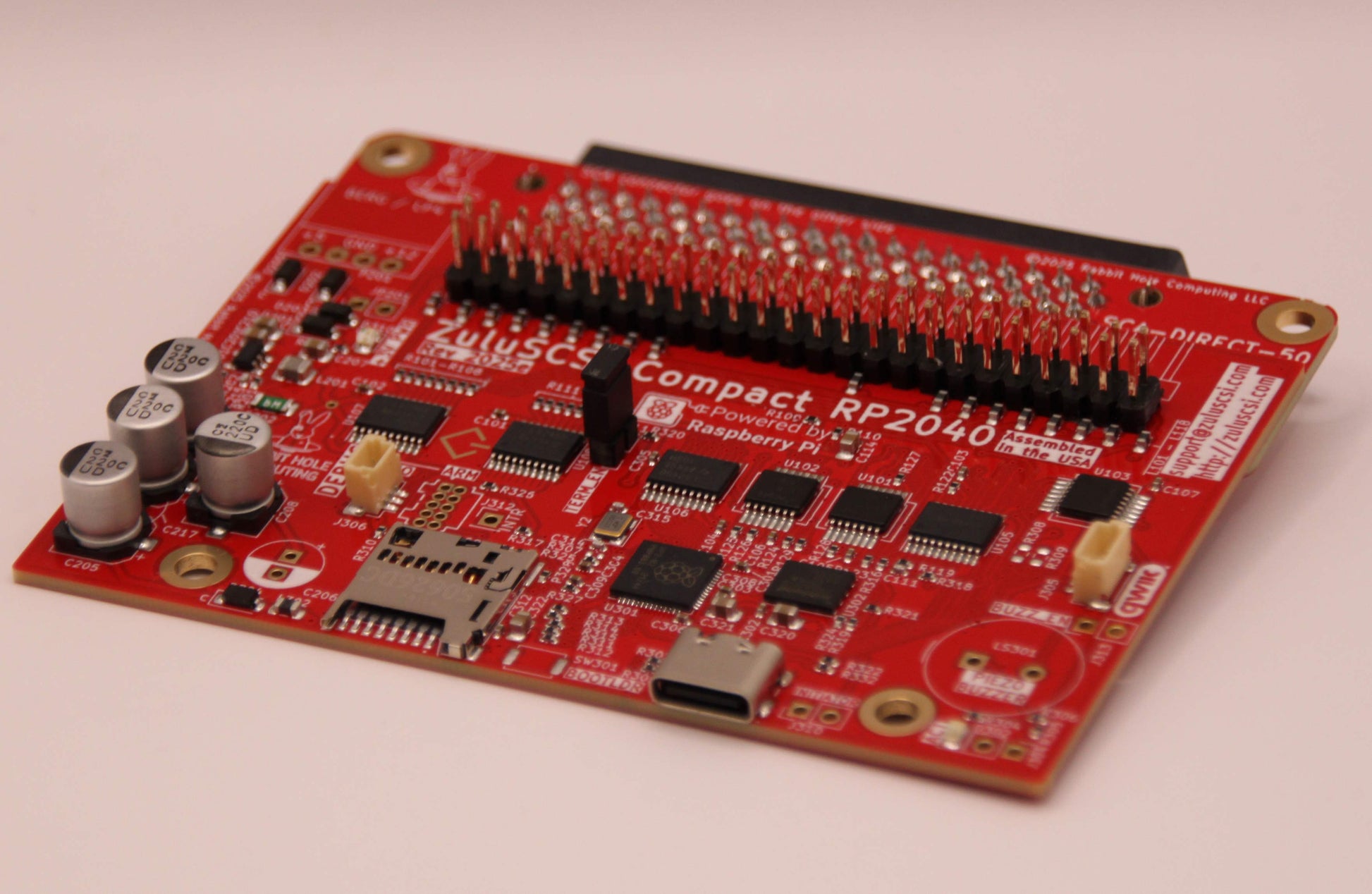

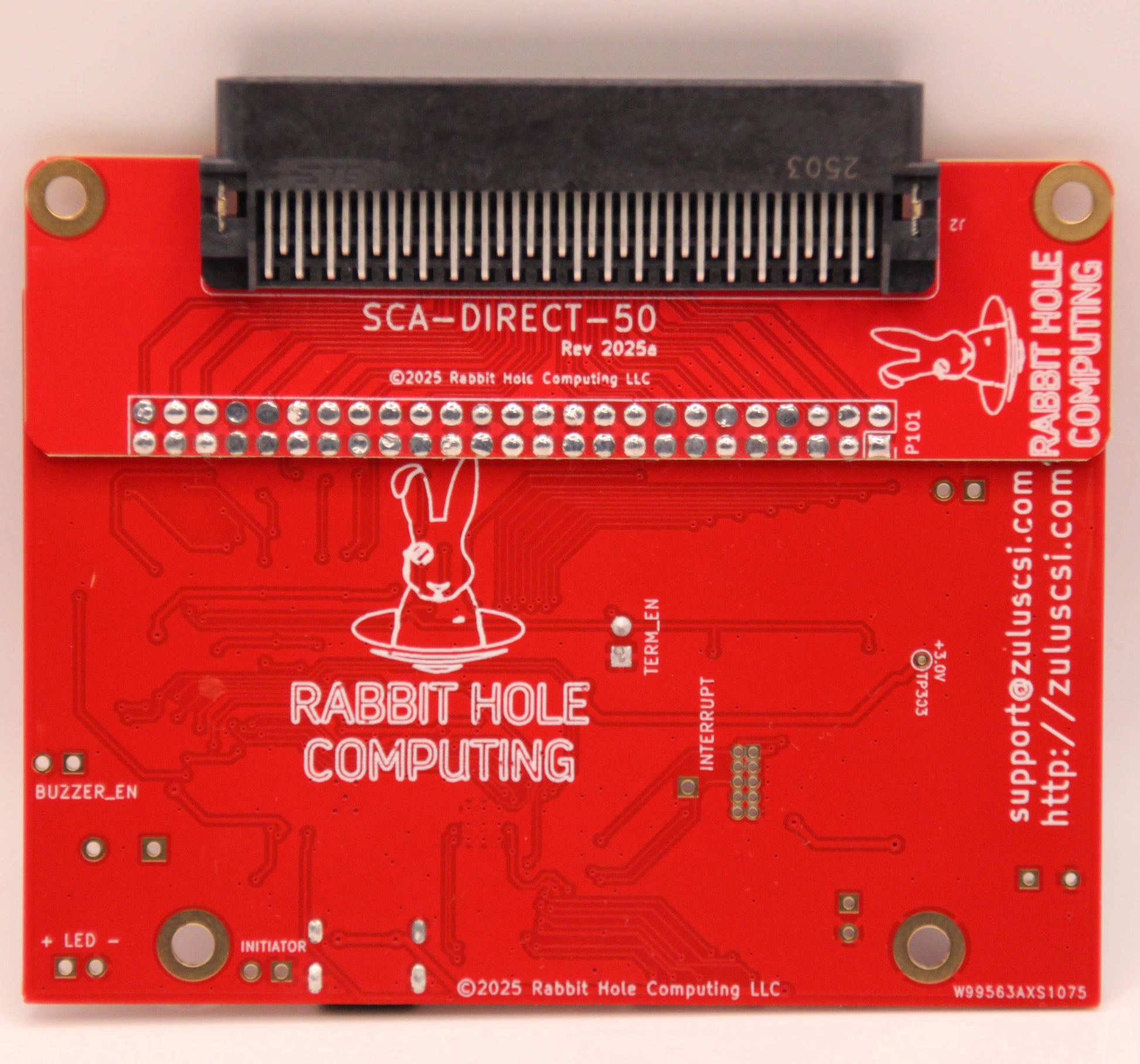

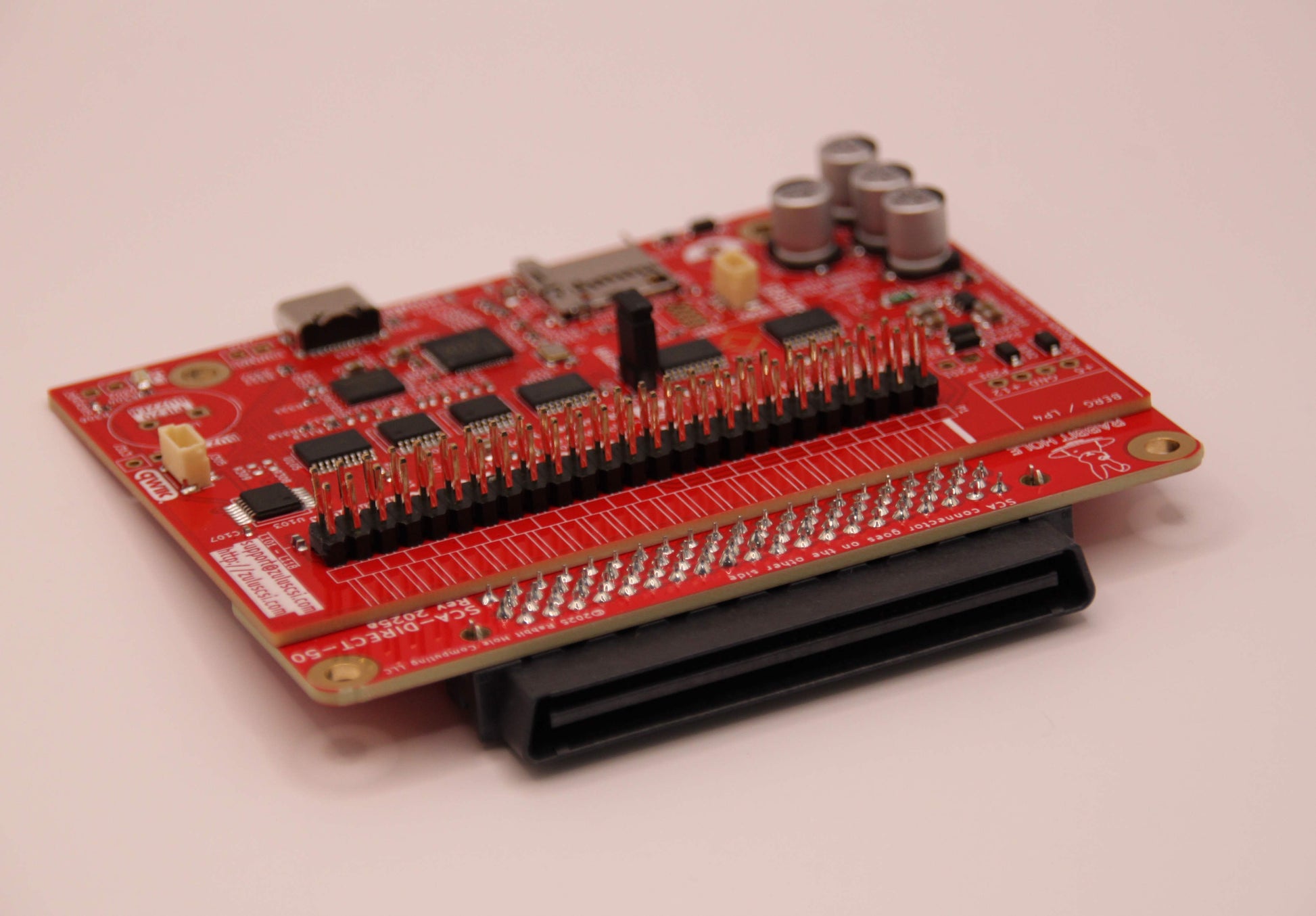

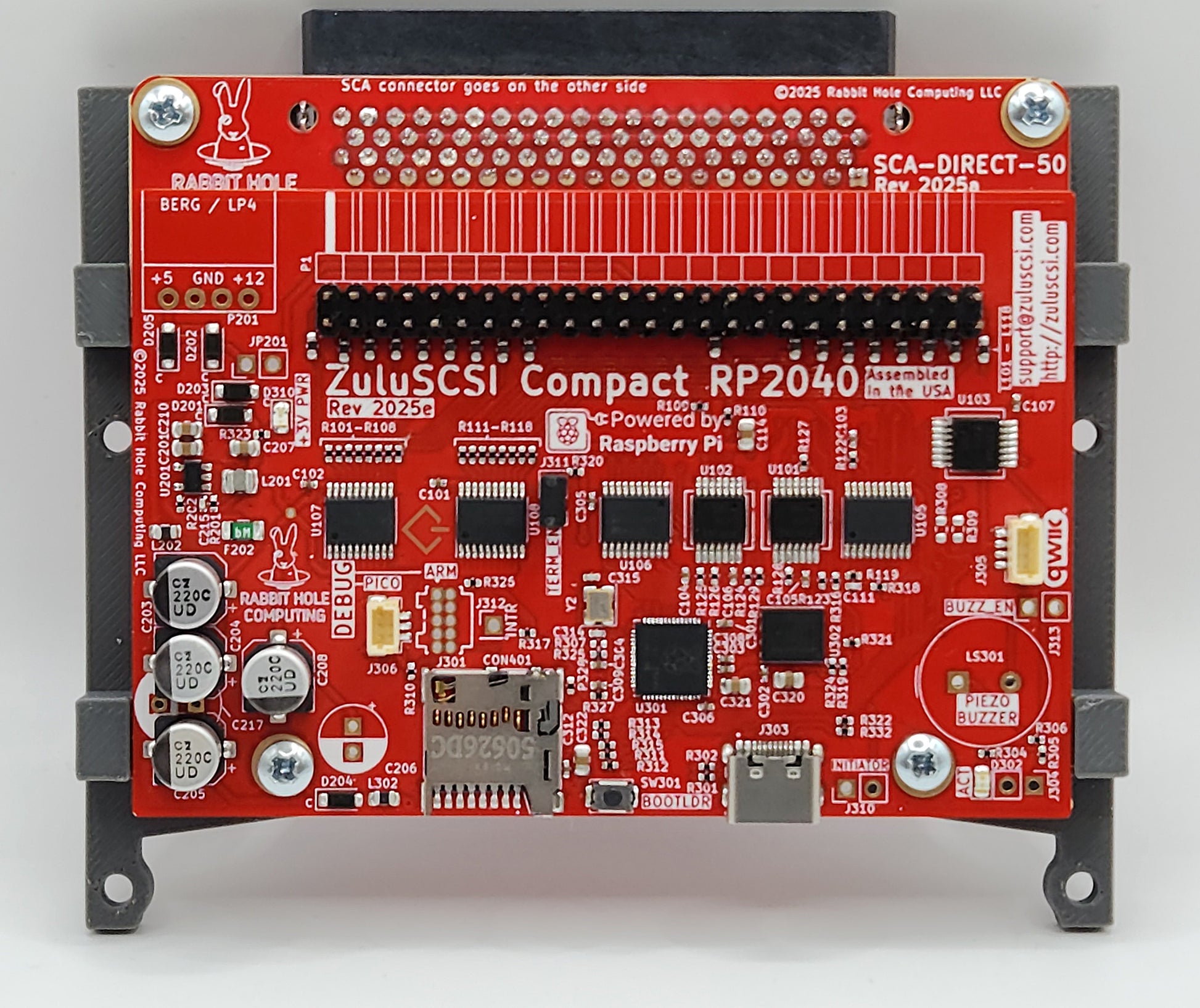

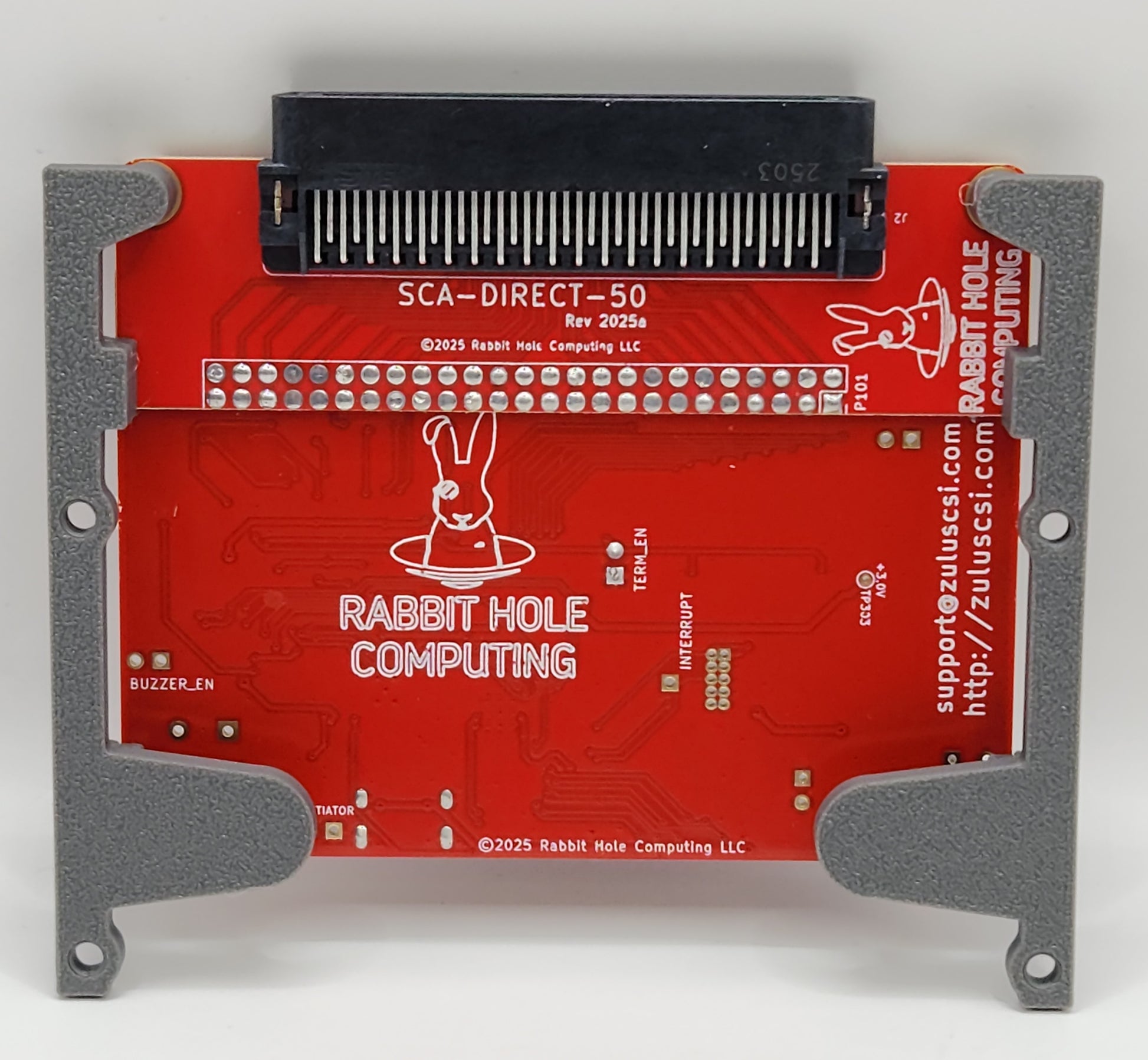

ZuluSCSI Compact RP2040 SCA is a high-speed SCSI emulator that uses a microSD card to emulate up to seven SCSI devices of varying device types (HDD, CD-ROM, Zip, Tape) at the same time, and gives you both a 50-pin IDC connector an SCA80 connector, making it our most economical solution for use in machines such as the SPARCstation 5, which have SCA drive bays, but still have a narrow (non-Wide/Ultra Wide) on-board SCSI controller. This makes it a more-affordable alternative to SCSIKnife SCA. The included 3.5" mounting bracket was designed to be able to be directly attached to the clear plastic SCA drive sleds used in the SPARCstation 5 and other similar drive sleds.
The ZuluSCSI firmware is open source.
Features
- SCA80 SCSI connector, plus 50 pin IDC SCSI connector.
- USB-C - New as of revision 2025a+
- Emulates up to 7 SCSI devices simultaneously, including CD-ROM
- Speaks both SCSI-1 and SCSI-2
- SCSI termination is enabled/disabled by a two-pin jumper header. The jumper is installed by default.
- SCSI Initiator mode can be enabled by installing a two-pin jumper header on the appropriate jumper header, and closing/shorting the jumper at power-on.
- Firmware upgrade simplicity; As easy as placing a file on the SD card.
- Highly configurable using a text-based ini file, zuluscsi.ini
- External LED pin header for attaching remote LEDs.
- Designed to be powered via SCSI termination power, when provided by the host
