ZuluSCSI Wide SCA - 16-bit SCSI Single Connector Attachment

ZuluSCSI Wide SCA - 16-bit SCSI Single Connector Attachment

$129.00 USD
$129.00 USD
Sale Sold out
SD Card
ZuluSCSI Wide SCA is an advanced high performance SCSI storage emulator with support for 16-bit Wide and Ultra Wide SCSI.

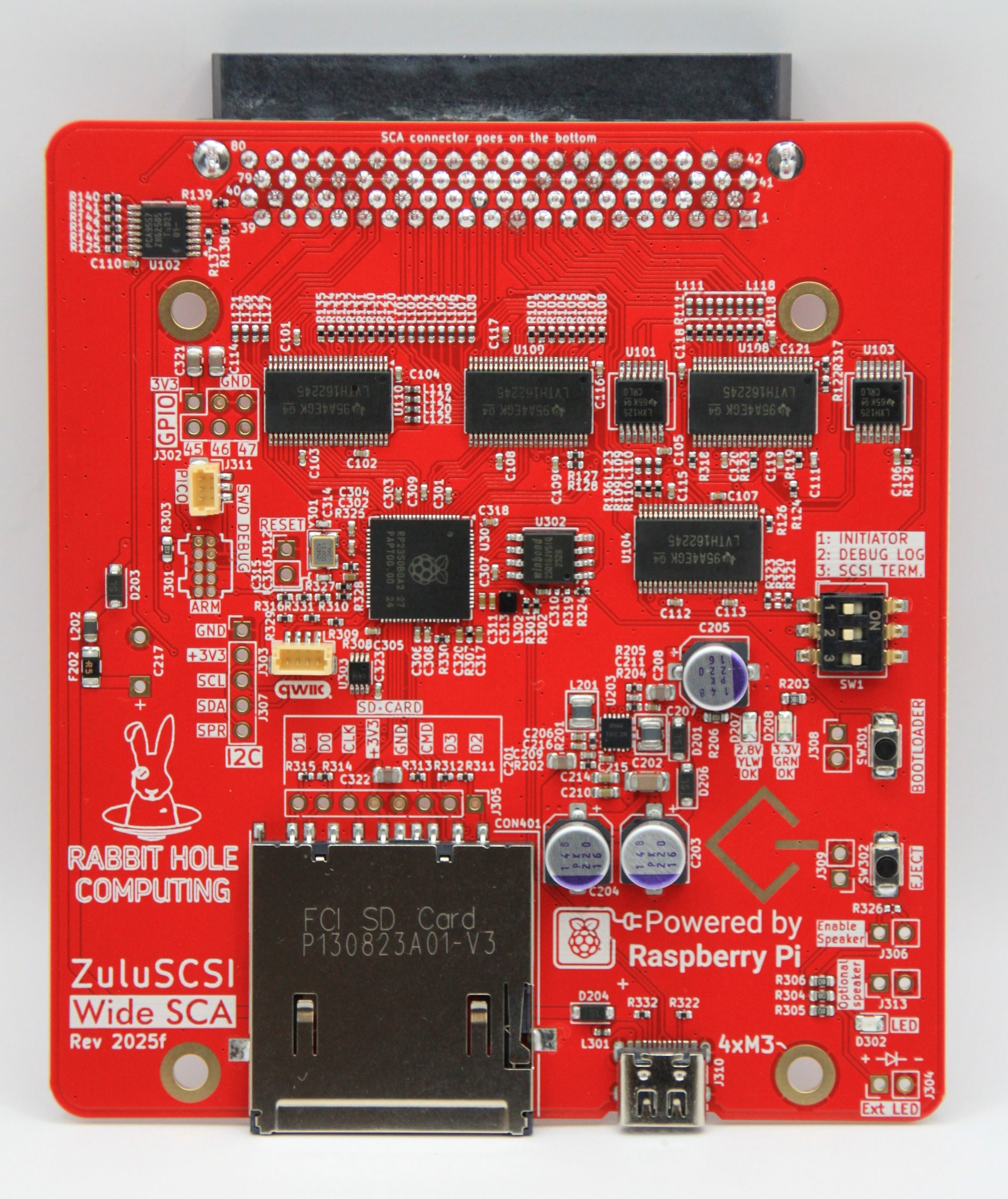

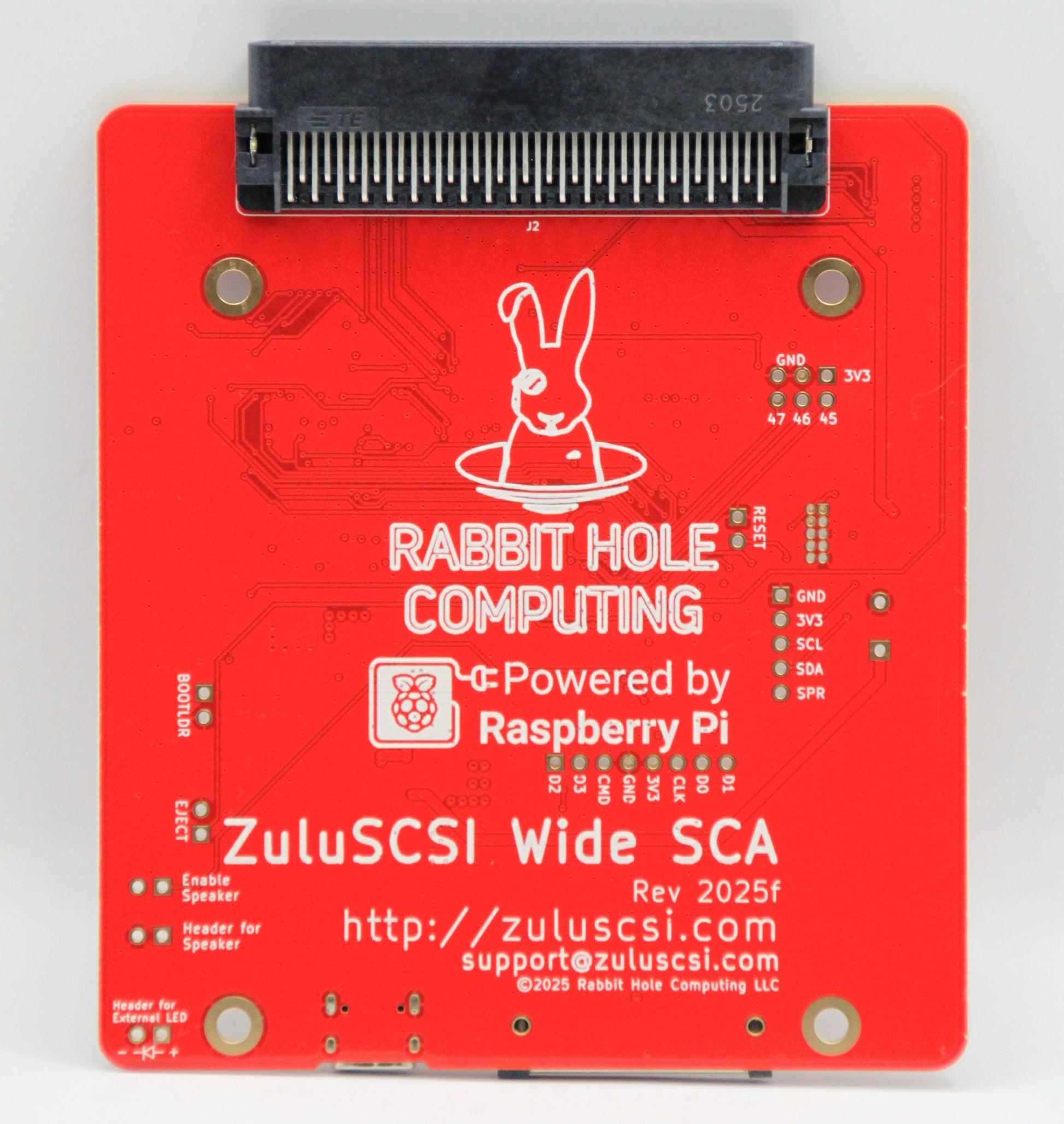

Developed by Rabbit Hole Computing, ZuluSCSI Wide is equipped with an 80-pin Single Connector Attachment connector, which carries both power and Wide SCSI signals. ZuluSCSI wide SCA is a single-ended SCSI device, but can be used with nearly all SCSI controllers that support LVD/SE operation, as the SCSI controller itself will fall back to single-ended mode.

ZuluSCSI Wide SCA supports Ultra Wide synchronous and asynchronous SCSI transfers, with read speeds up to 34 megabytes/second.  A SCSI controller with Wide or Ultra Wide SCSI support is required to achieve maximum throughput.
ZuluSCSI is easy to use: Simply place an appropriately named disk image or CD-ROM ISO on your SD card in order to present it for use by your SCSI host system. ZuluSCSI Wide supports both FAT and ExFAT-formatted SD cards of up to 1.5TB in size.

Documentation for ZuluSCSI Wide is available here.

ZuluSCSI Wide features

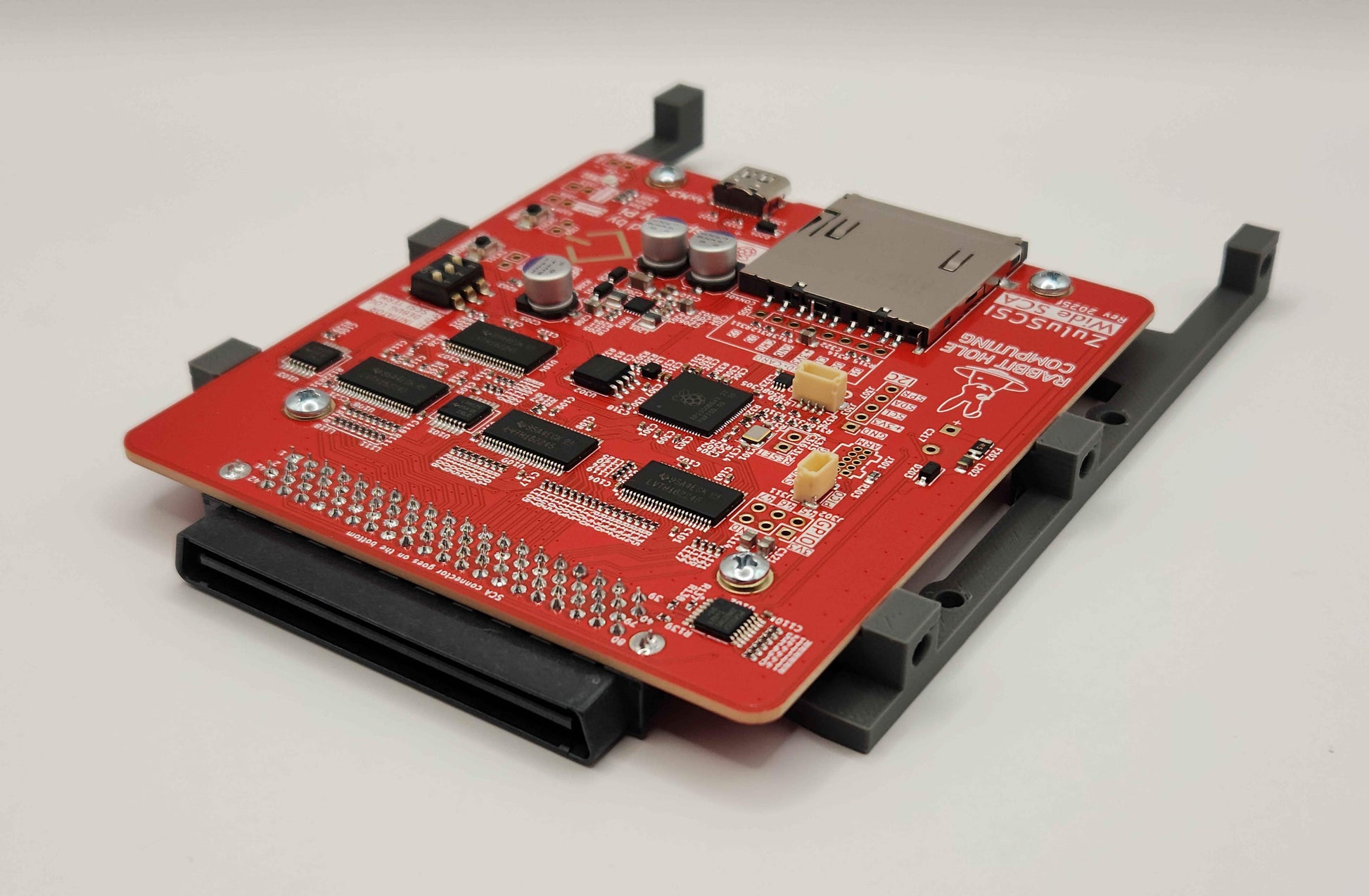

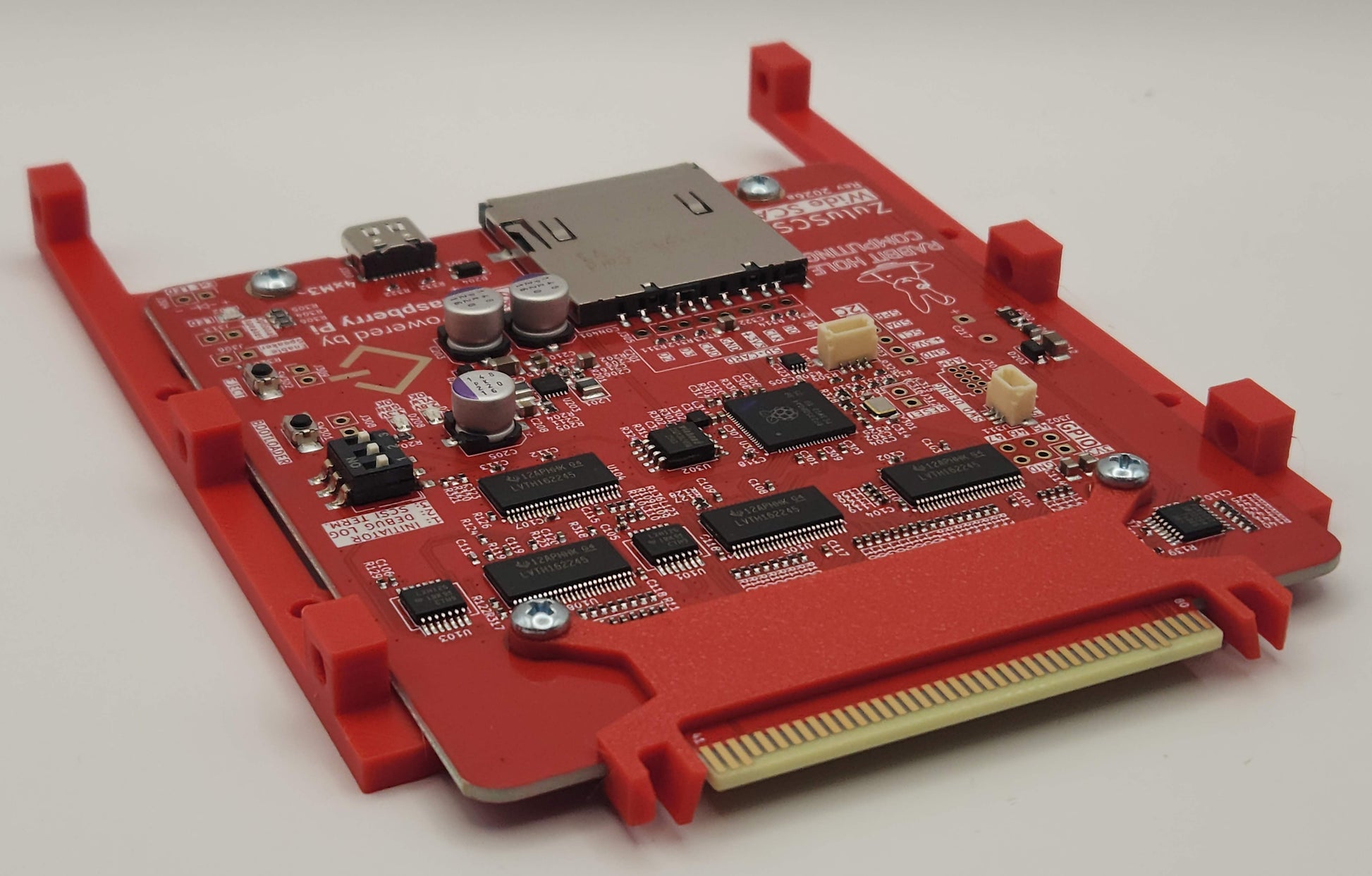

  • 80-pin SCA SCSI connector, which carries both power and Ultra Wide SCSI signals
  • Ultra Wide SCSI @ 40MHz
  • Up to 34 megabytes per second reads, 15 megabytes per second on writes
  • SCSI Initiator support in 16-bit Wide mode
  • Full-size SD card socket
  • USB-C connector for power, data transfer (slow, 1Mbyte/sec), and diagnostic/log viewing purposes, via USB serial console
  • Emulates up to 15 different SCSI block devices simultaneously

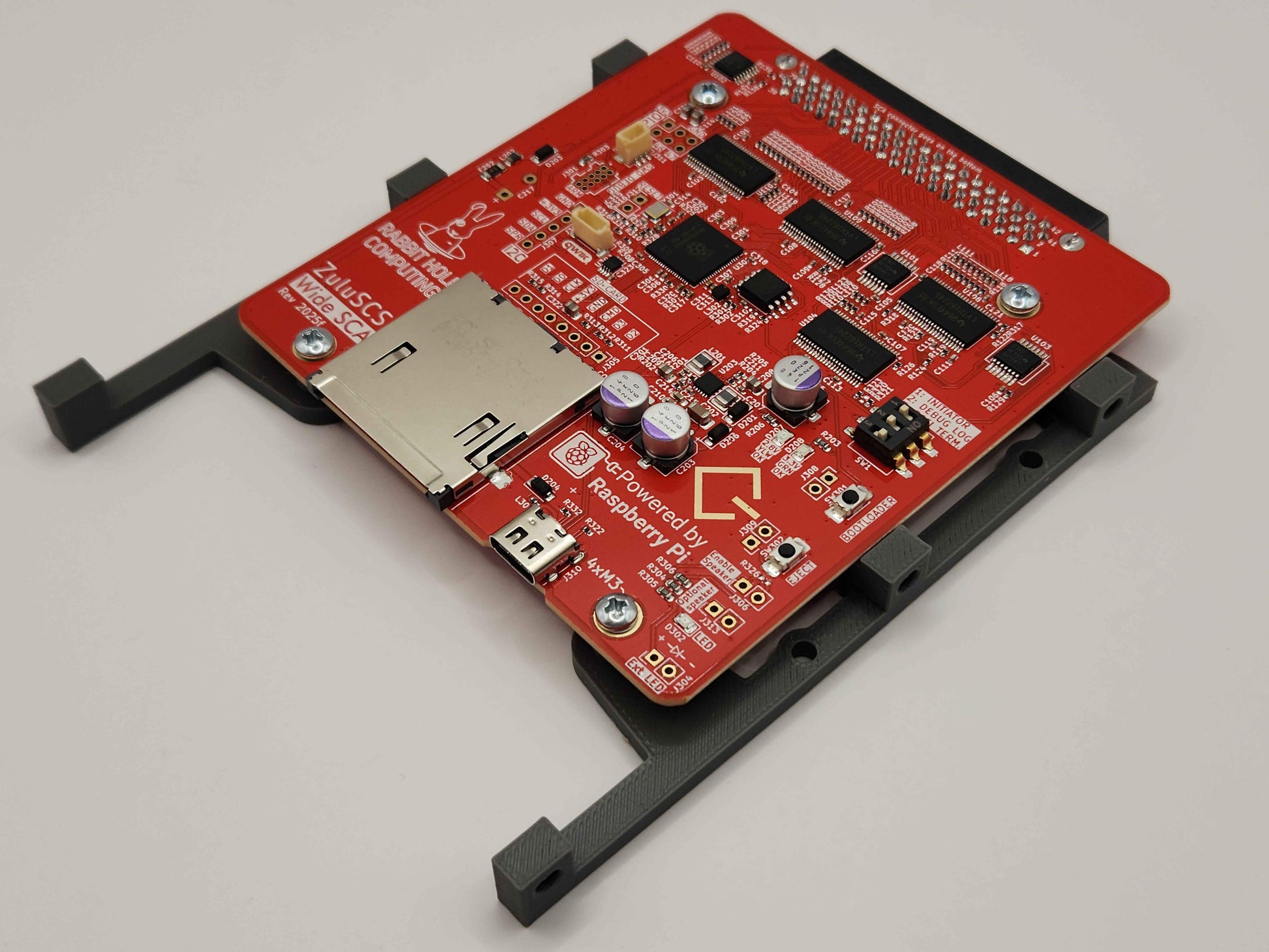

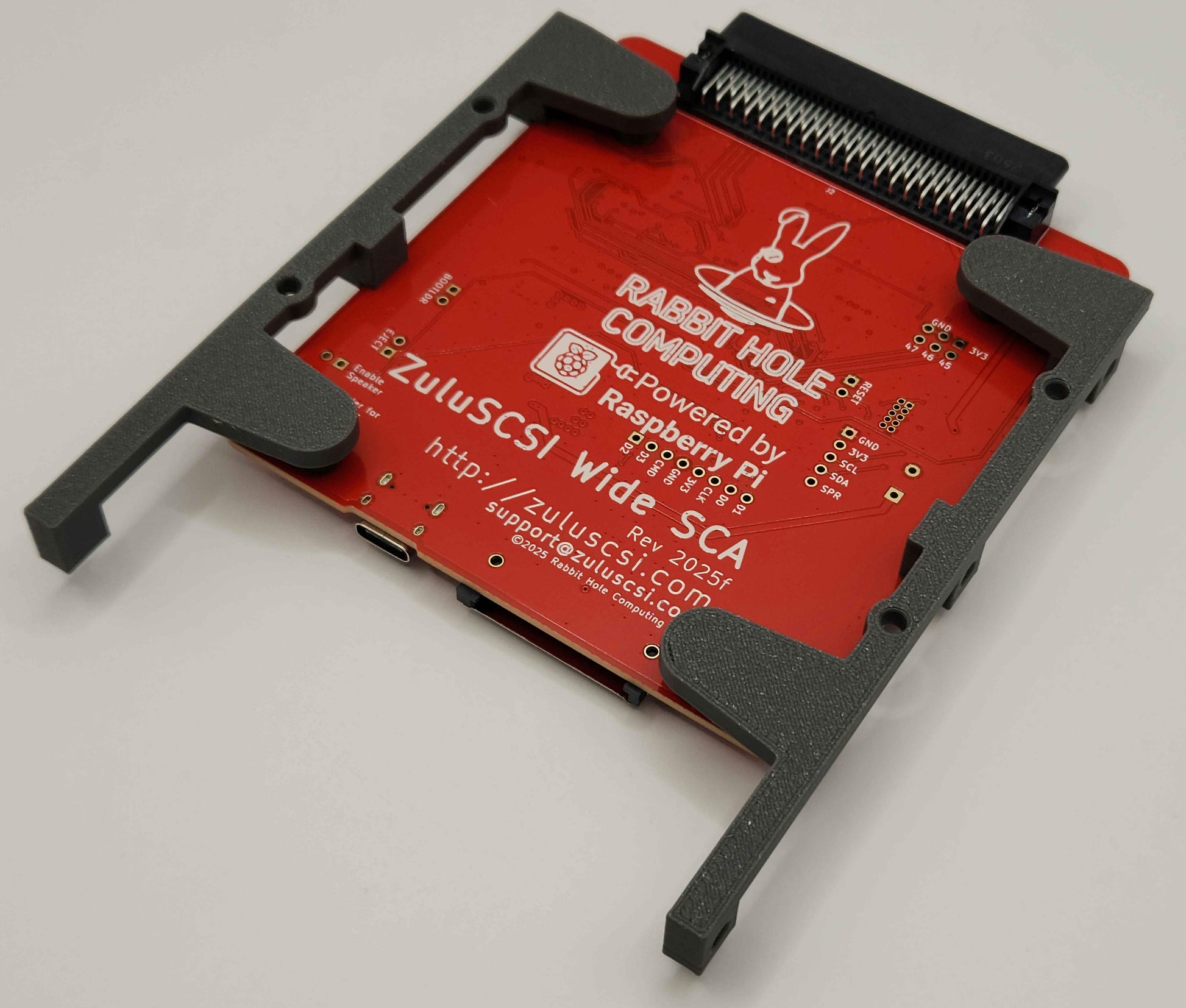

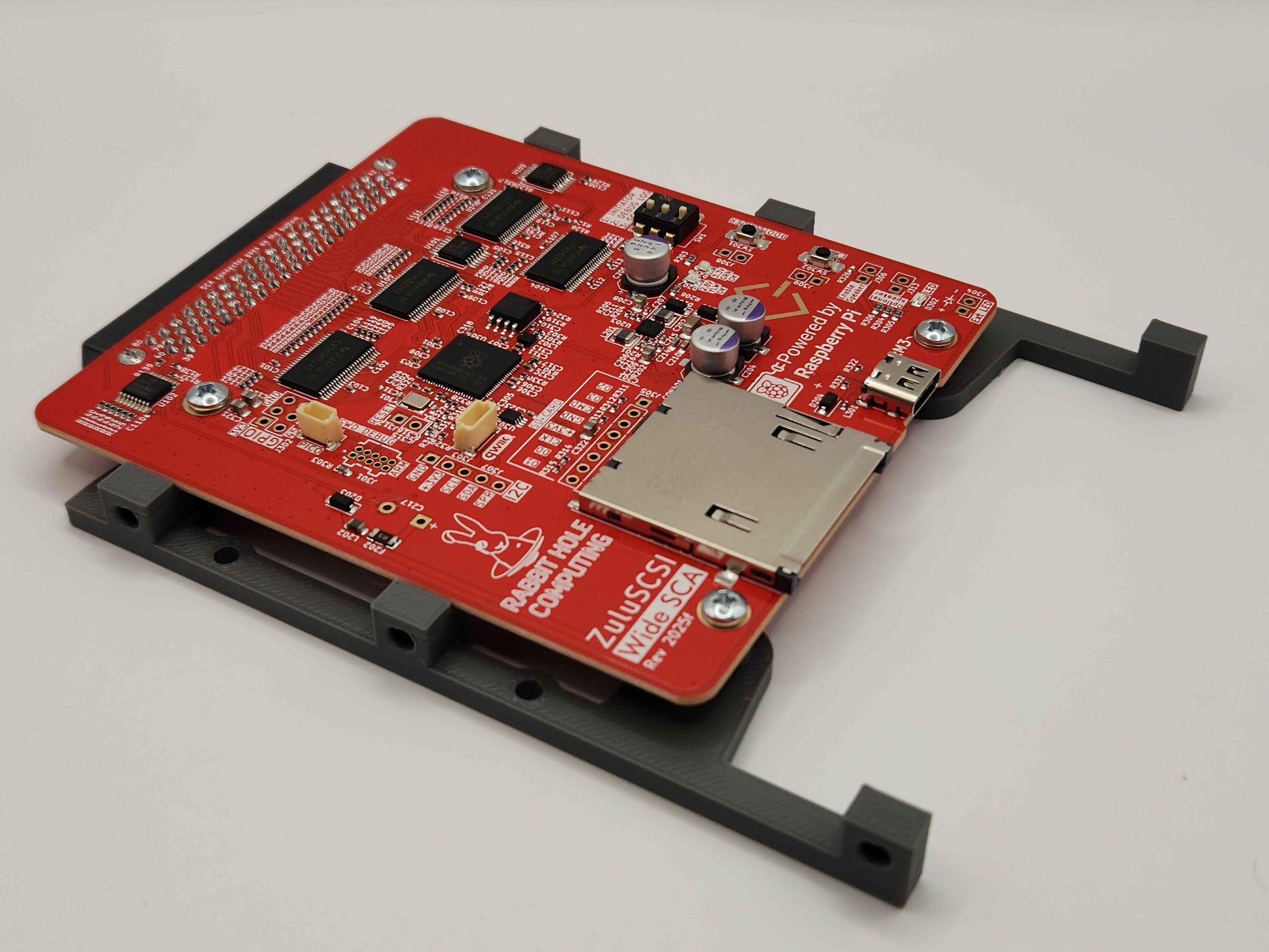

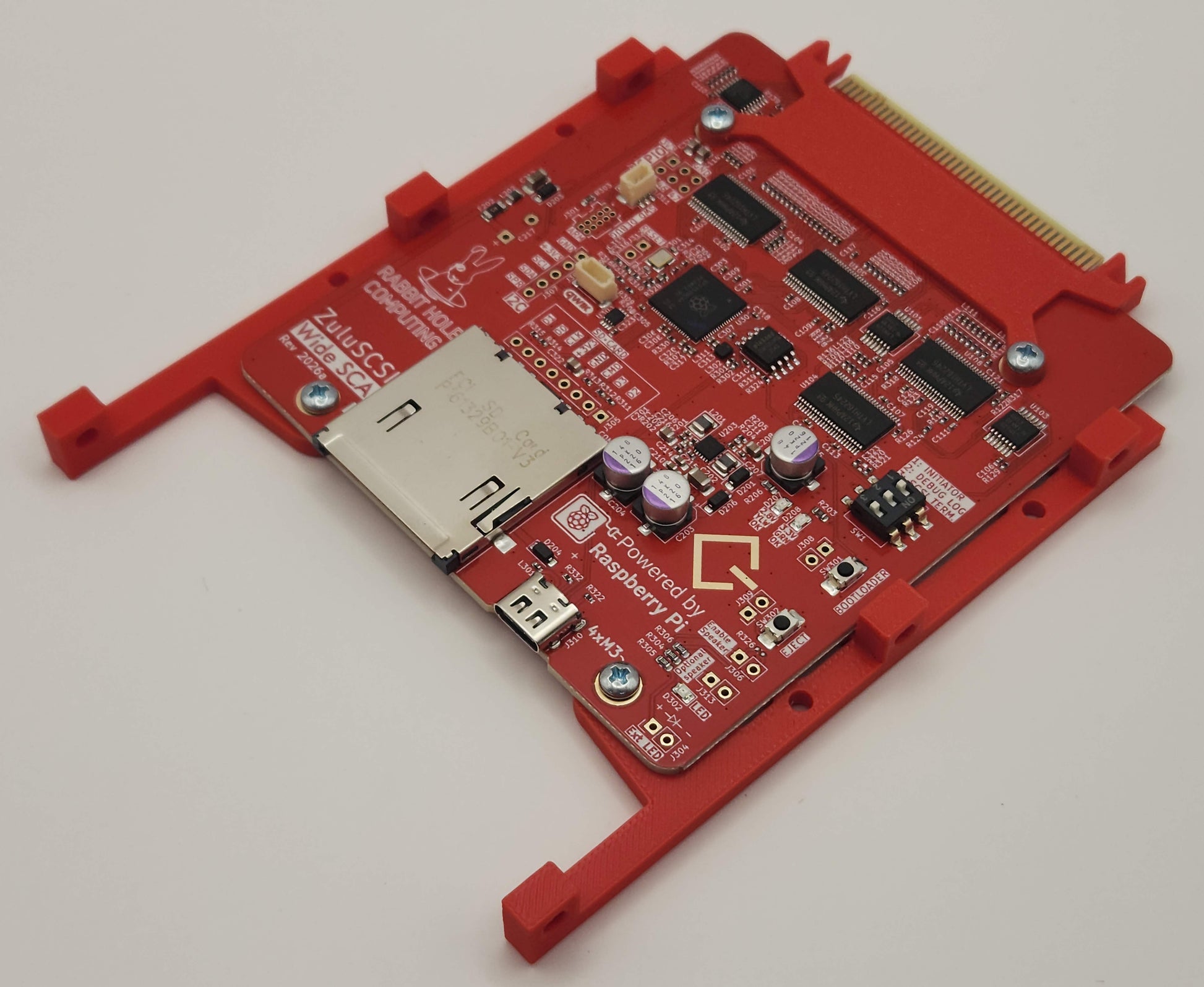

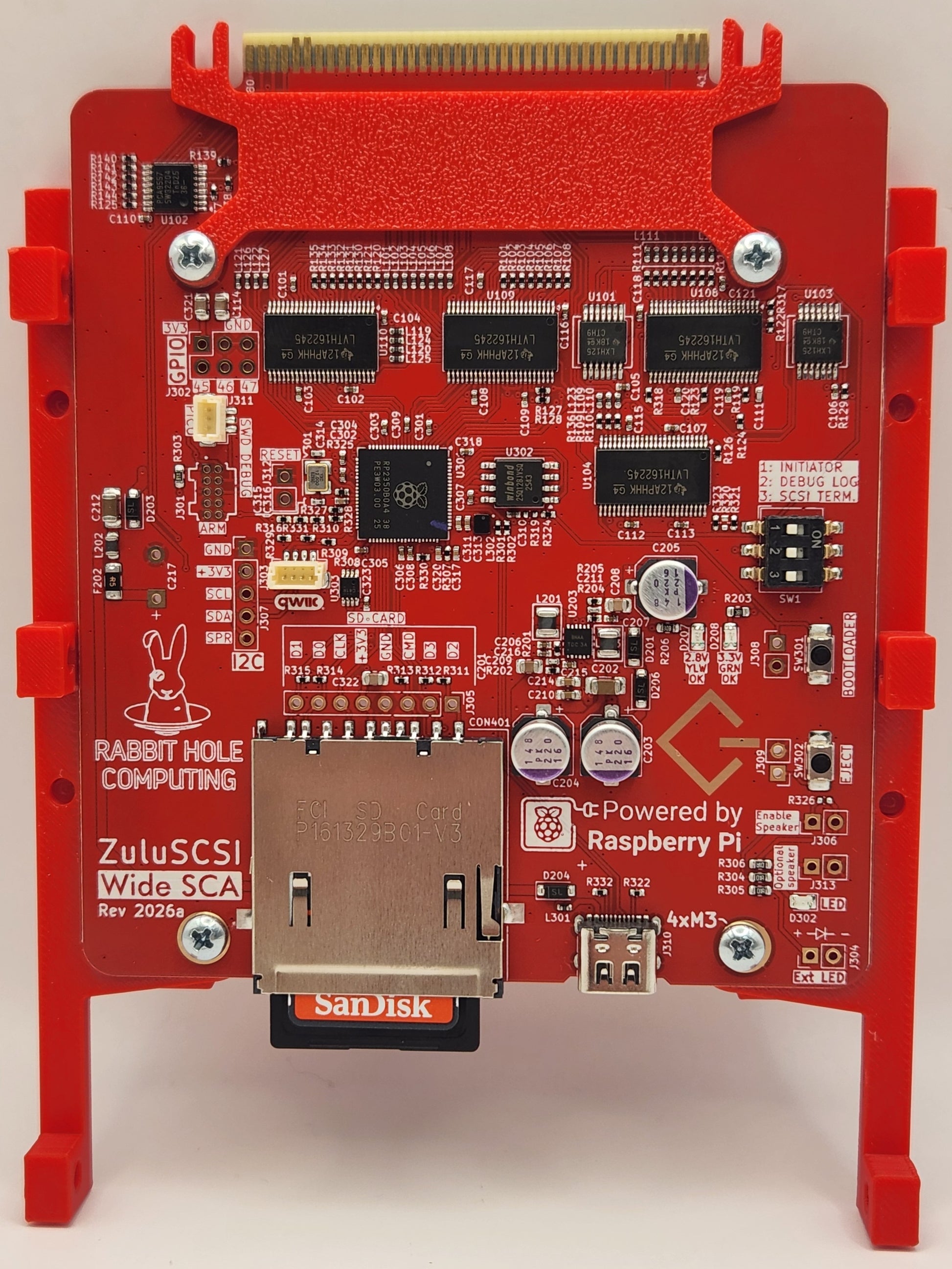

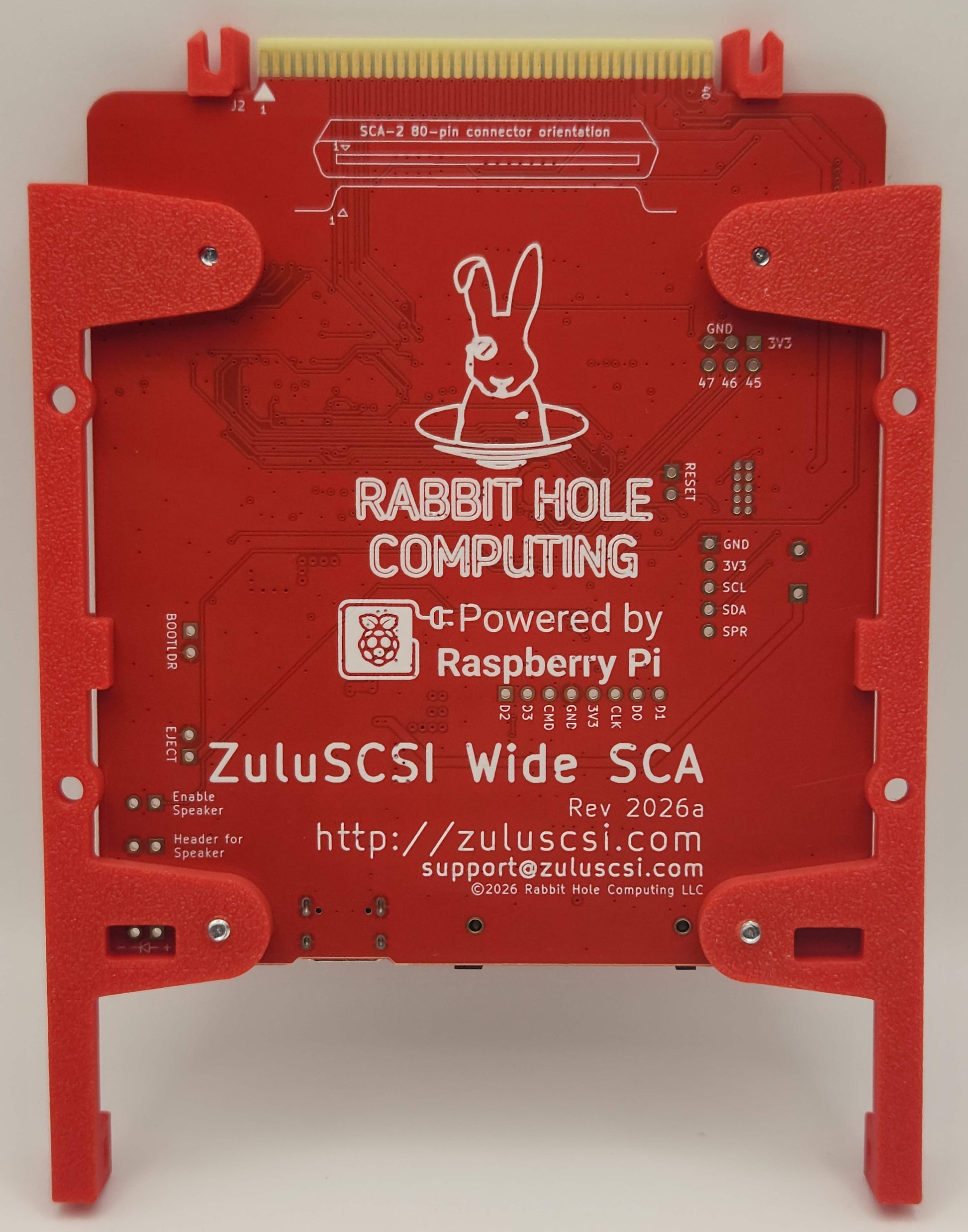

dimensions: 90mm by 100mm. The four M3-sized mounting hole dimensions are identical to those found on the bottom of any 2.5" hard drive.
