ZuluSCSI Wide SCA - 16-bit UW SCSI emulator - Rev 2026a
ZuluSCSI Wide SCA - 16-bit UW SCSI emulator - Rev 2026a
Regular price
$99.00 USD
Regular price
Sale price
$99.00 USD
Quantity
Couldn't load pickup availability
ZuluSCSI Wide SCA is an advanced high performance SCSI storage emulator with support for 16-bit Wide and Ultra Wide SCSI.
Developed by Rabbit Hole Computing, ZuluSCSI Wide is equipped with an 80-pin Single Connector Attachment connector, which carries both power and Wide SCSI signals. ZuluSCSI wide SCA is a single-ended SCSI device, but can be used with nearly all SCSI controllers that support LVD/SE operation, as the SCSI controller itself will fall back to single-ended mode.
ZuluSCSI Wide SCA supports Ultra Wide synchronous and asynchronous SCSI transfers, with read speeds up to 34 megabytes/second. A SCSI controller with Wide or Ultra Wide SCSI support is required to achieve maximum throughput.
ZuluSCSI is easy to use: Simply place an appropriately named disk image or CD-ROM ISO on your SD card in order to present it for use by your SCSI host system. ZuluSCSI Wide supports both FAT and ExFAT-formatted SD cards of up to 1.5TB in size.
Documentation for ZuluSCSI Wide is available here.
ZuluSCSI Wide SCA features
- 80-pin SCA SCSI connector, which carries both power and 16-bit Ultra Wide SCSI
-
Ultra Wide SCSI @ 20MHz
- Up to 34 megabytes per second reads, 15 megabytes per second on writes
- SCSI Initiator support in 16-bit wide mode
- Full-size, high-quality Amphenol-FCI manufactured SD card socket
- USB-C connector for power, data transfer (slow, 1Mbyte/sec), and diagnostic/log viewing purposes, via USB serial console
- Emulates up to 15 different SCSI block devices simultaneously
- Innovative & patent-pending "Hard Gold" 0.3u edge connector (the PCB itself)

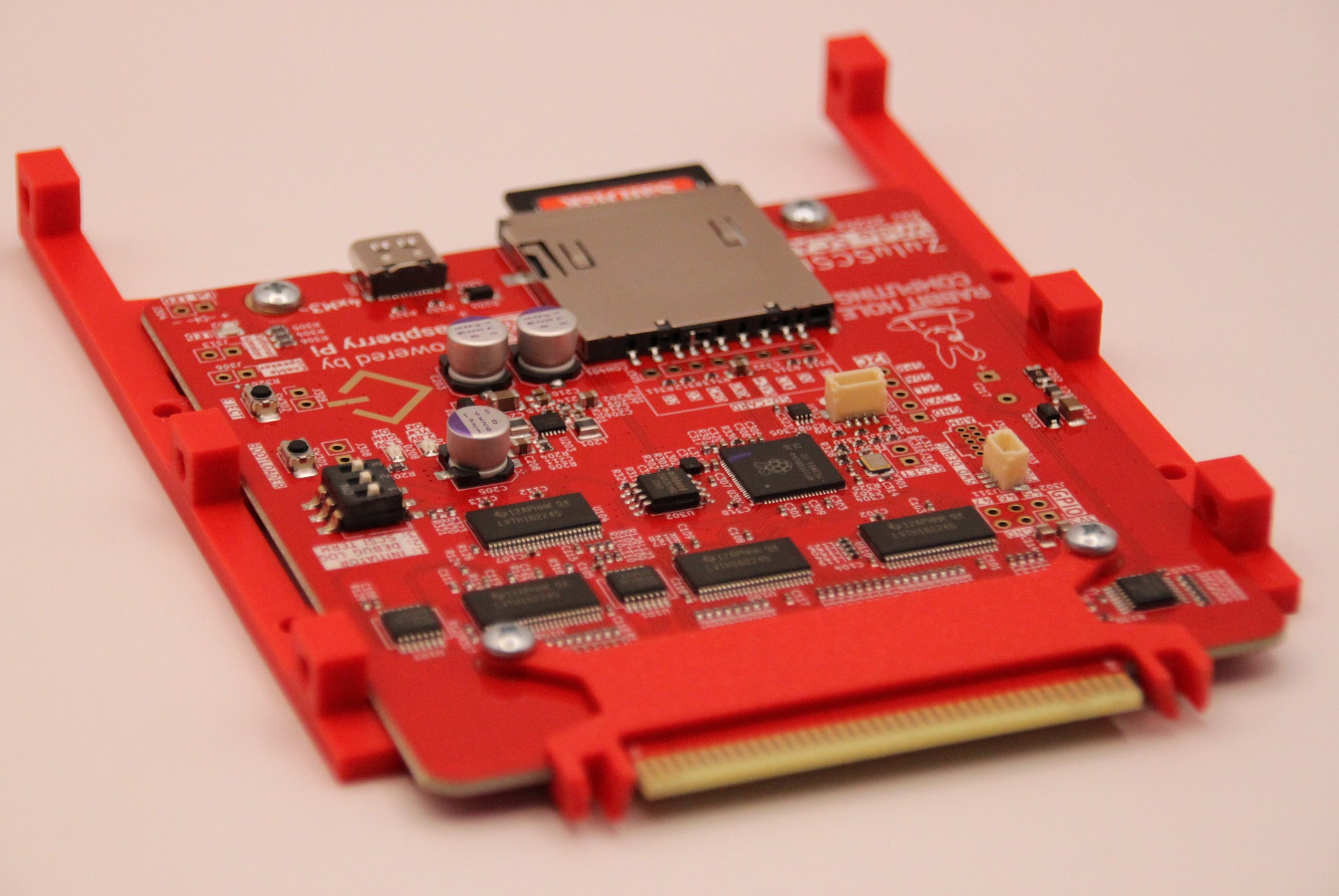

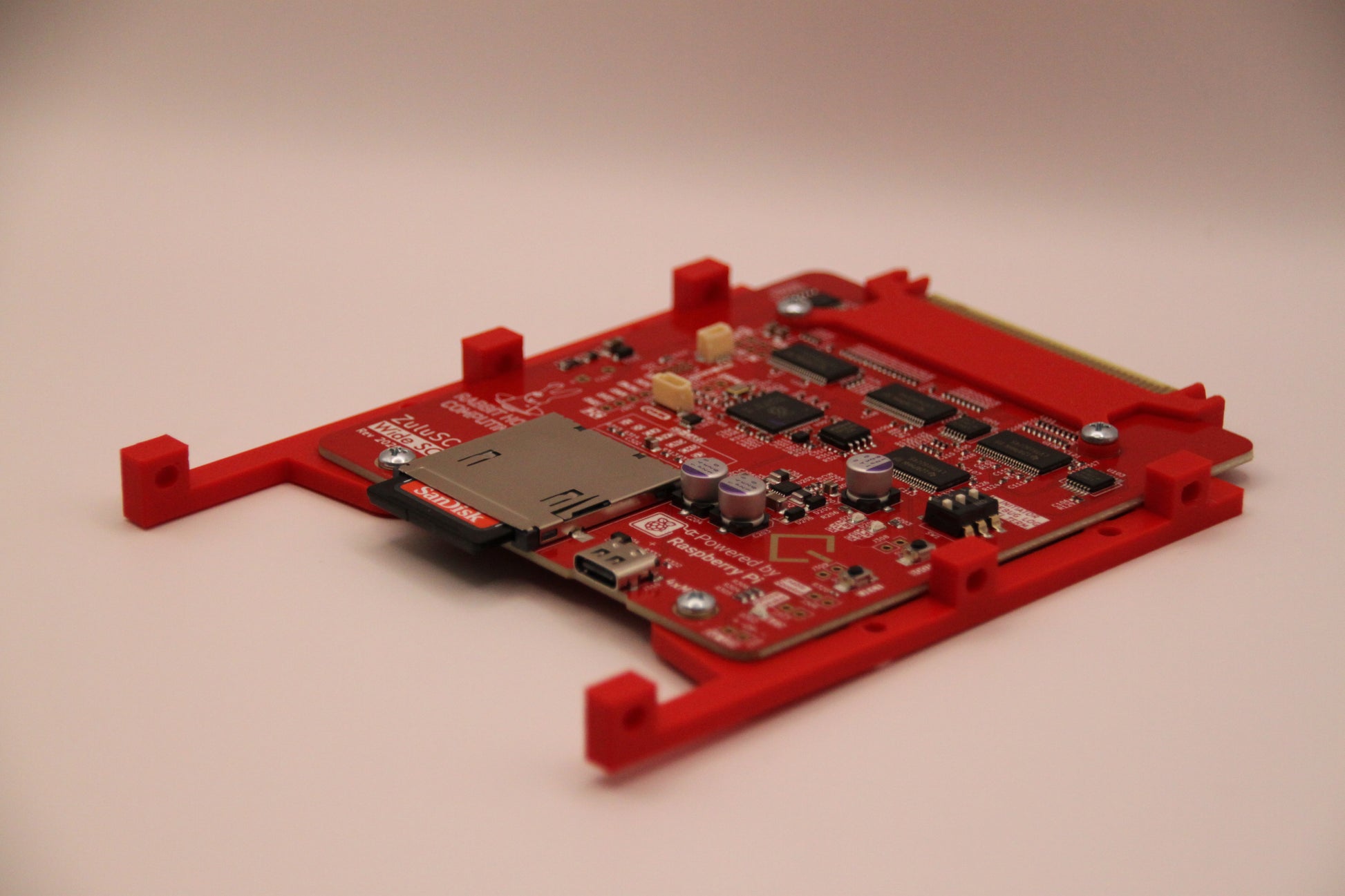

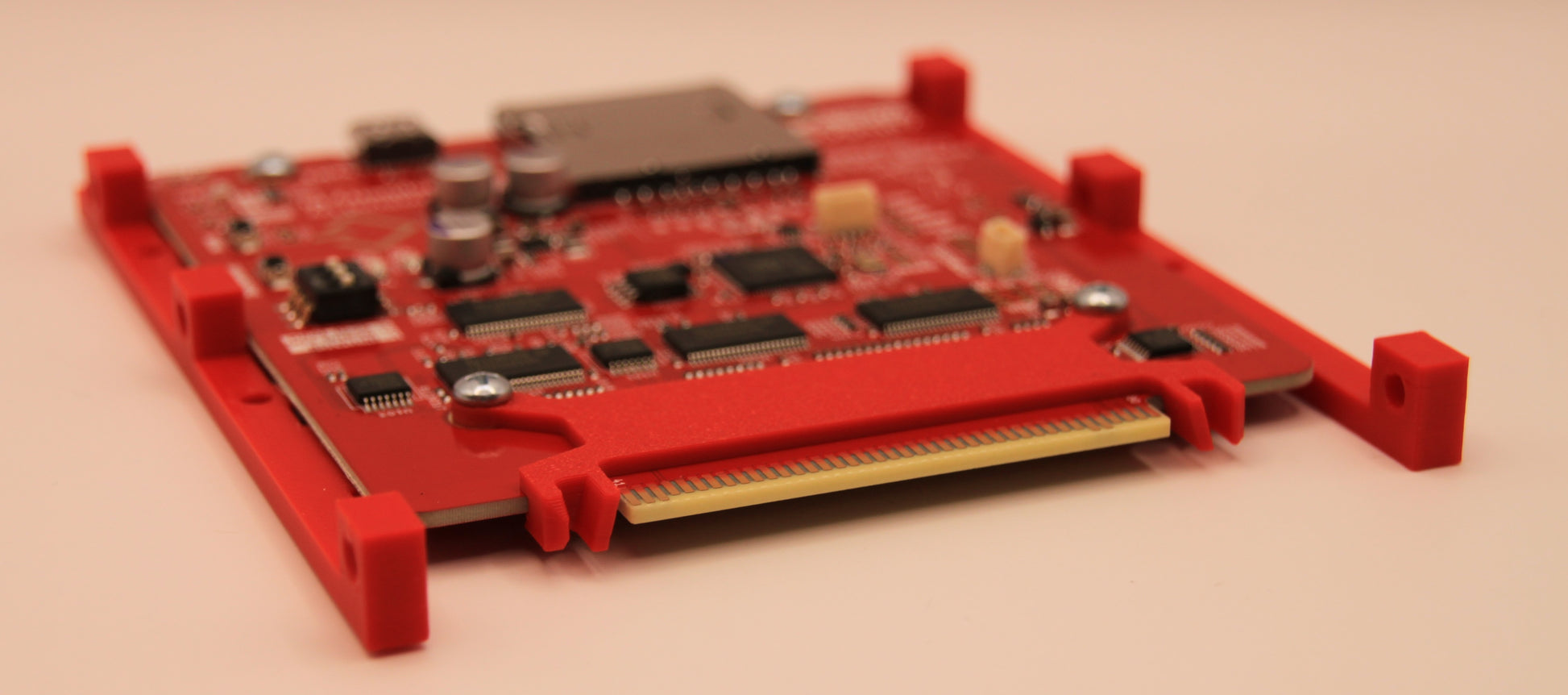

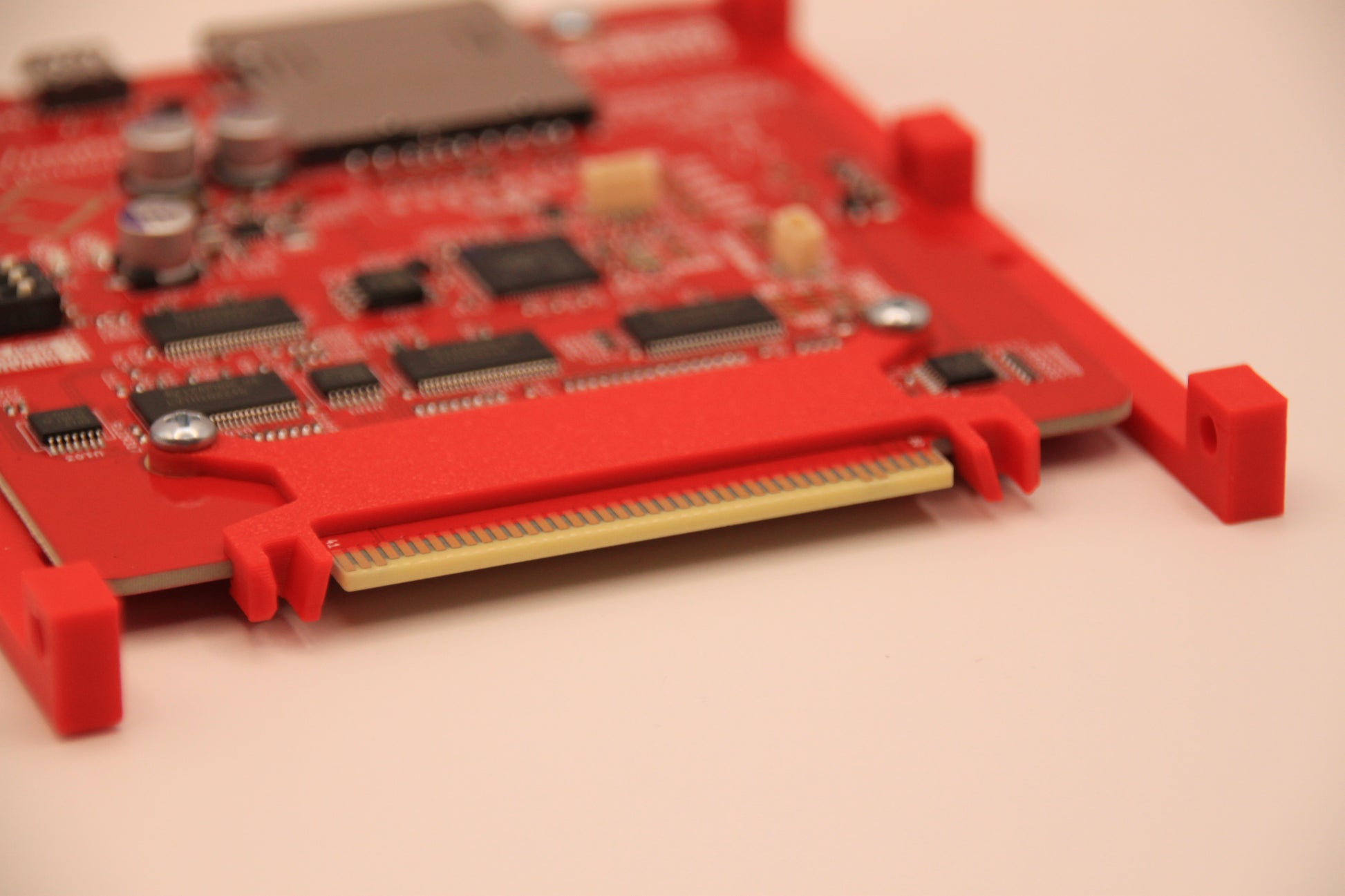

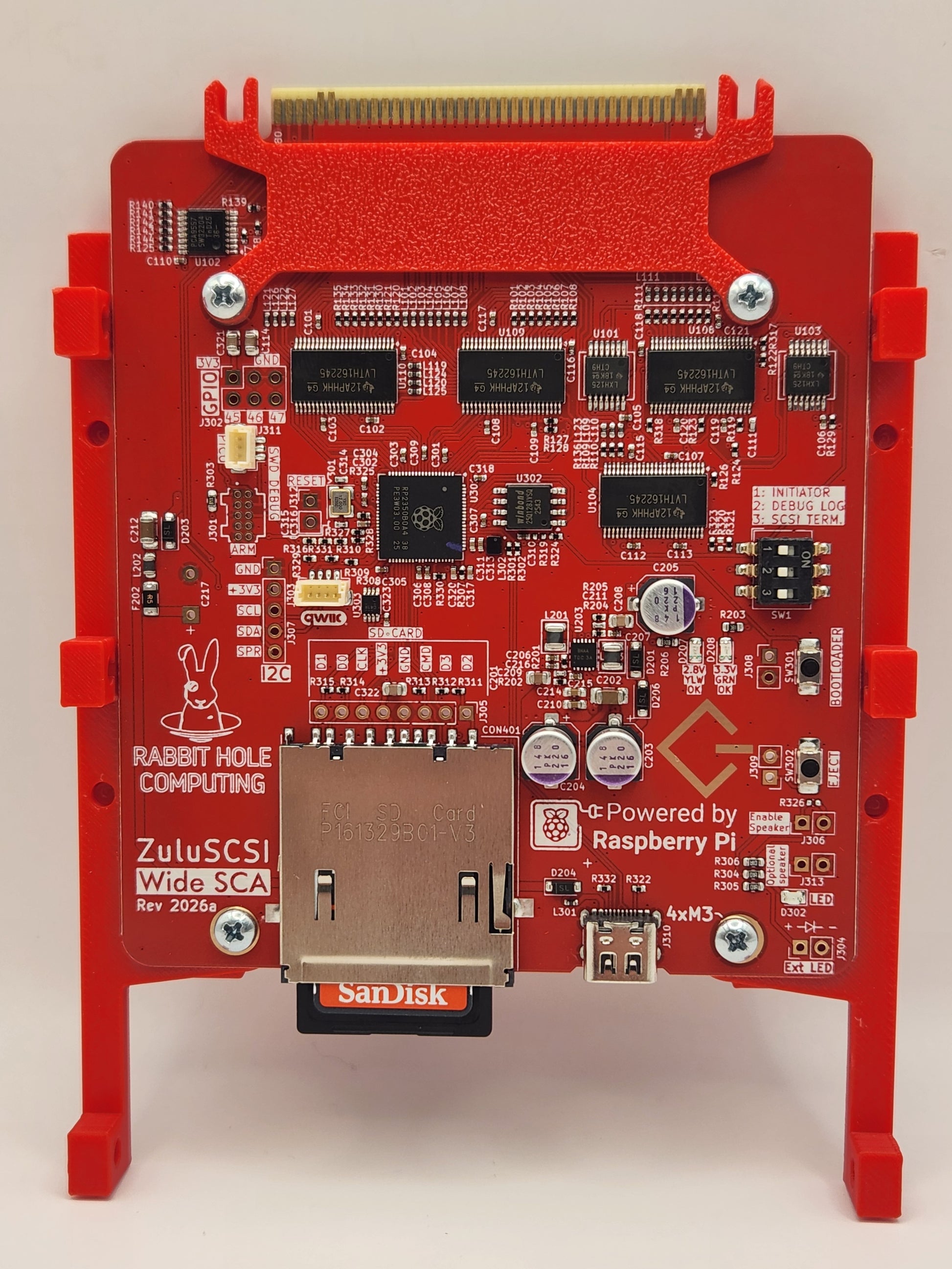

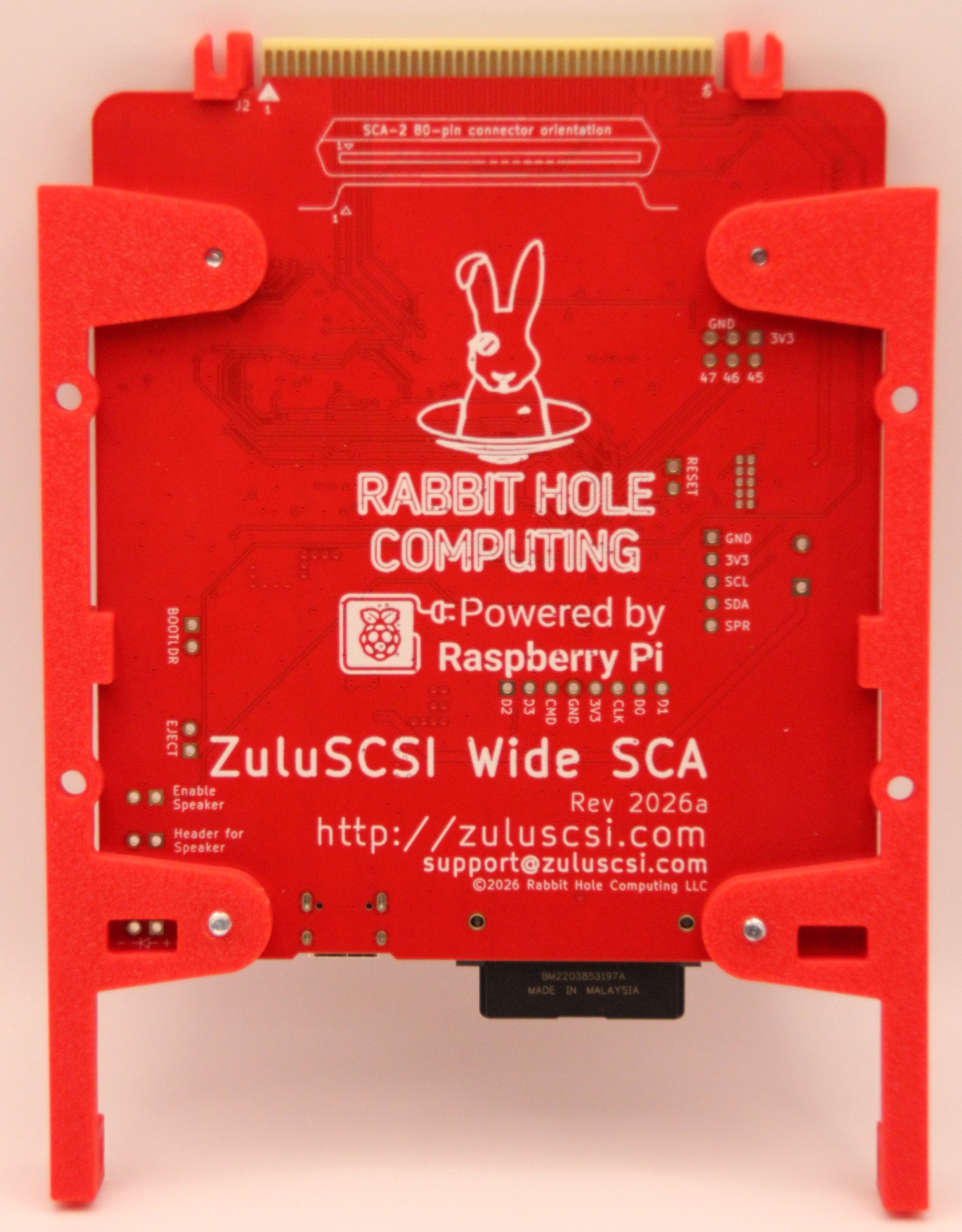

- 3.5" 3D-printed drive/mounting rails included (see product photos
- Compatible with SCSI-based IBM AS/400, as of the latest firmware
