Rabbit Hole Computing

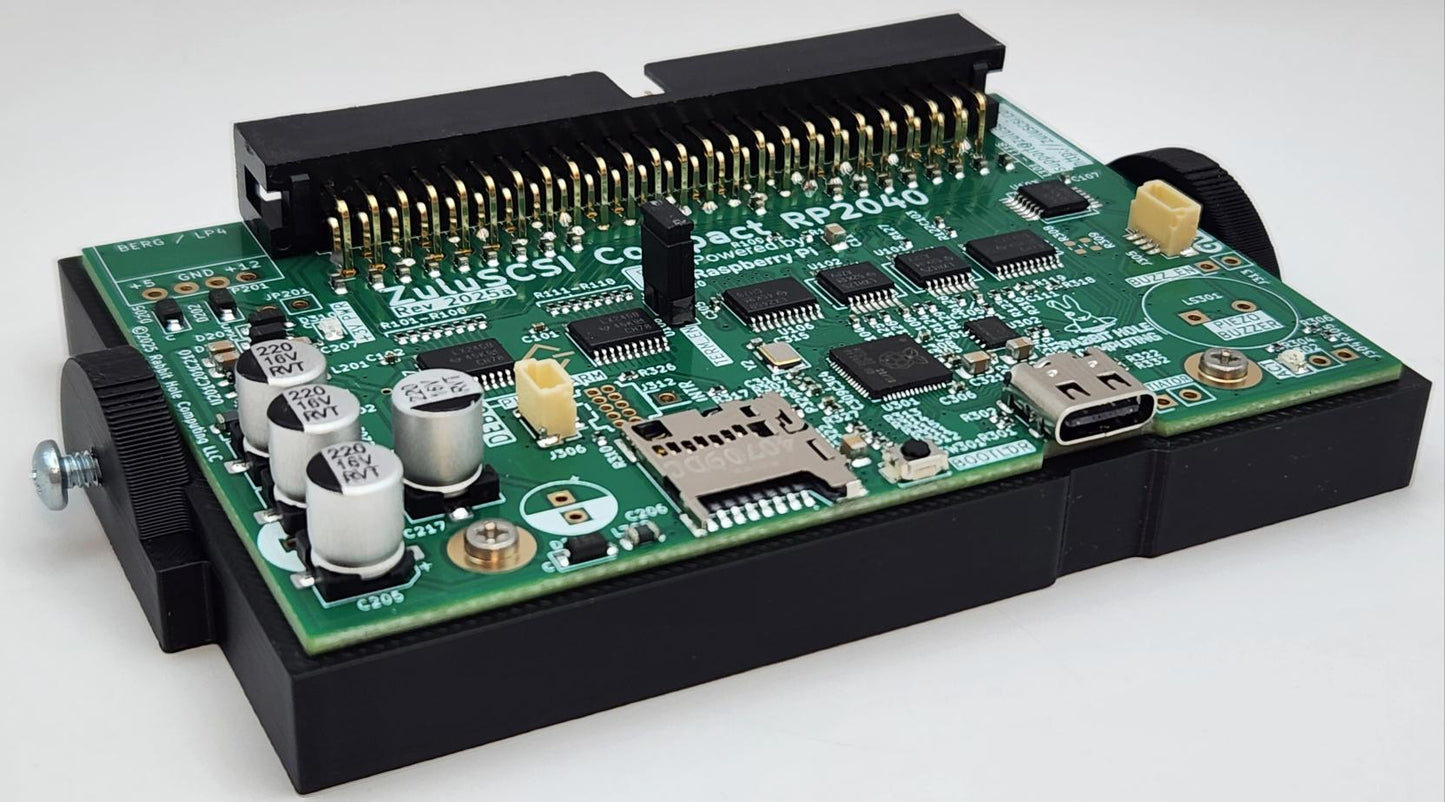

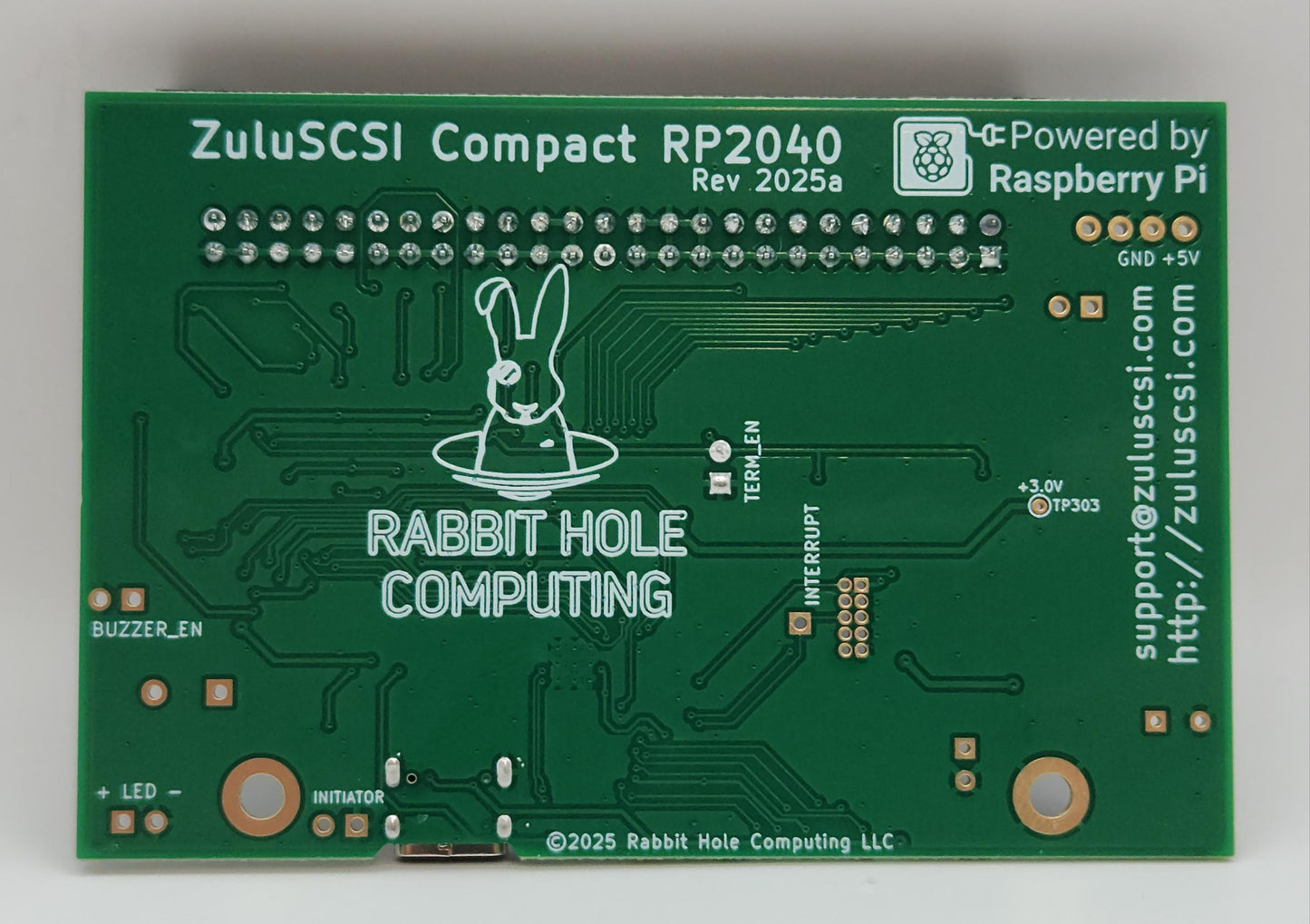

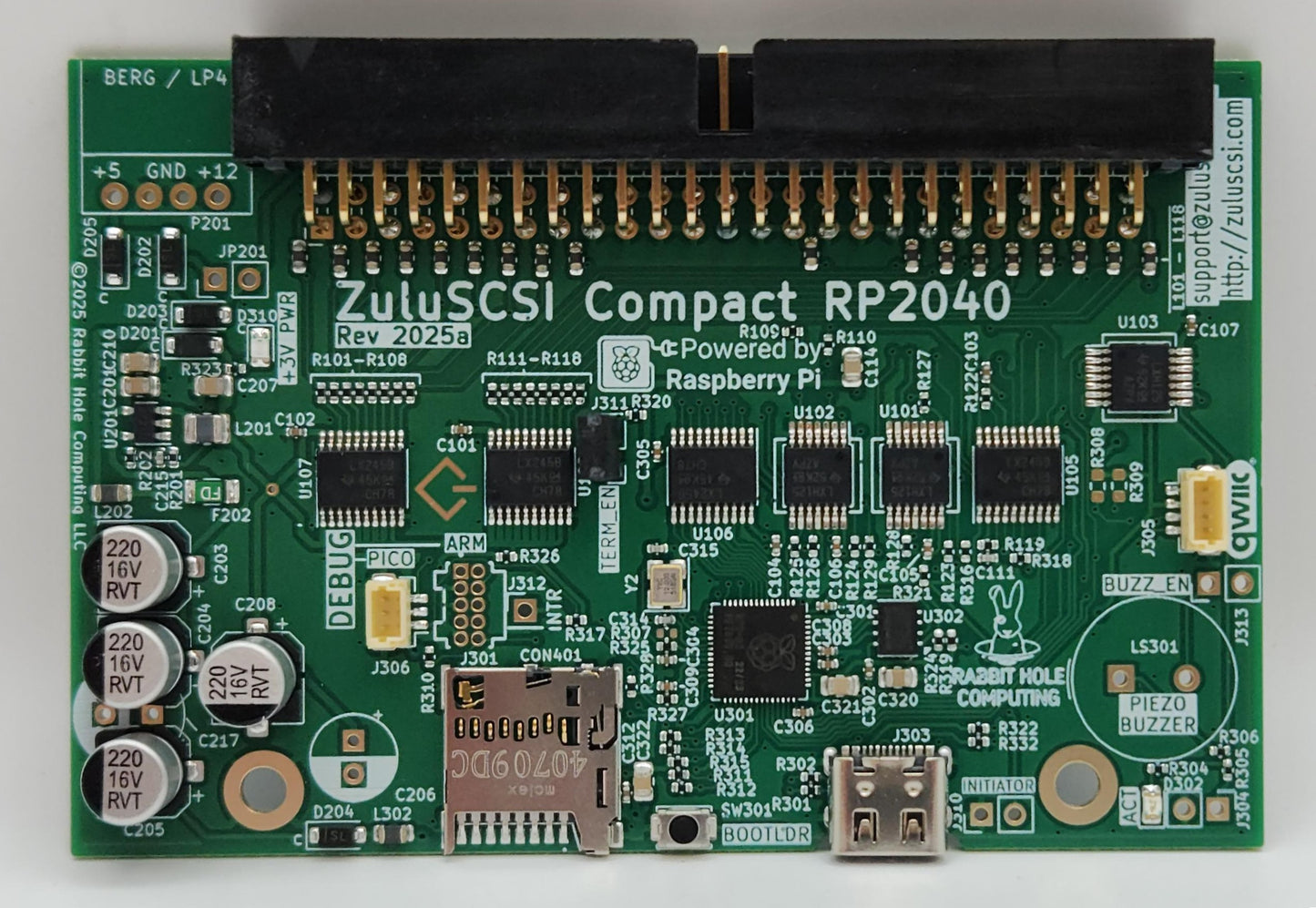

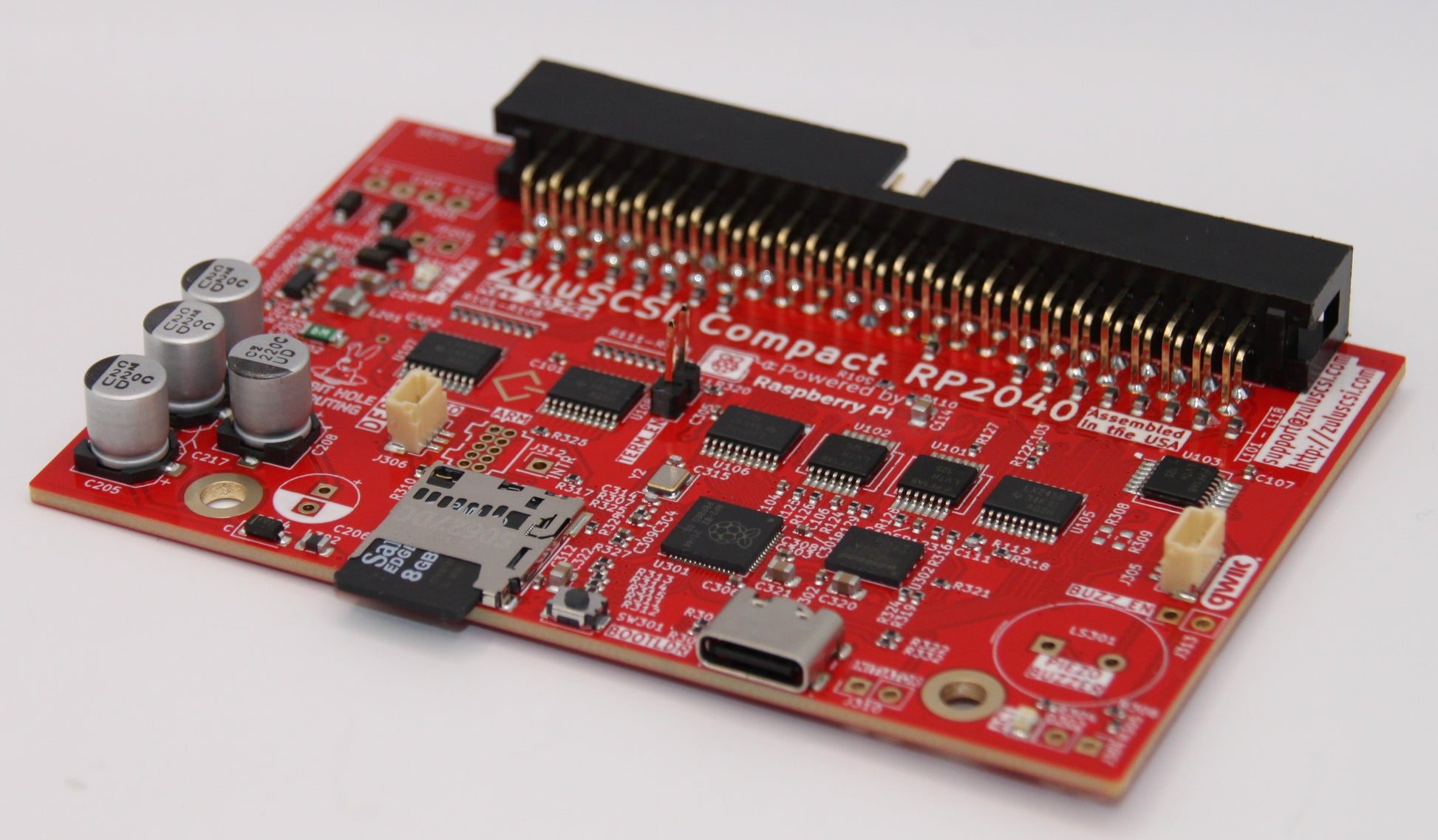

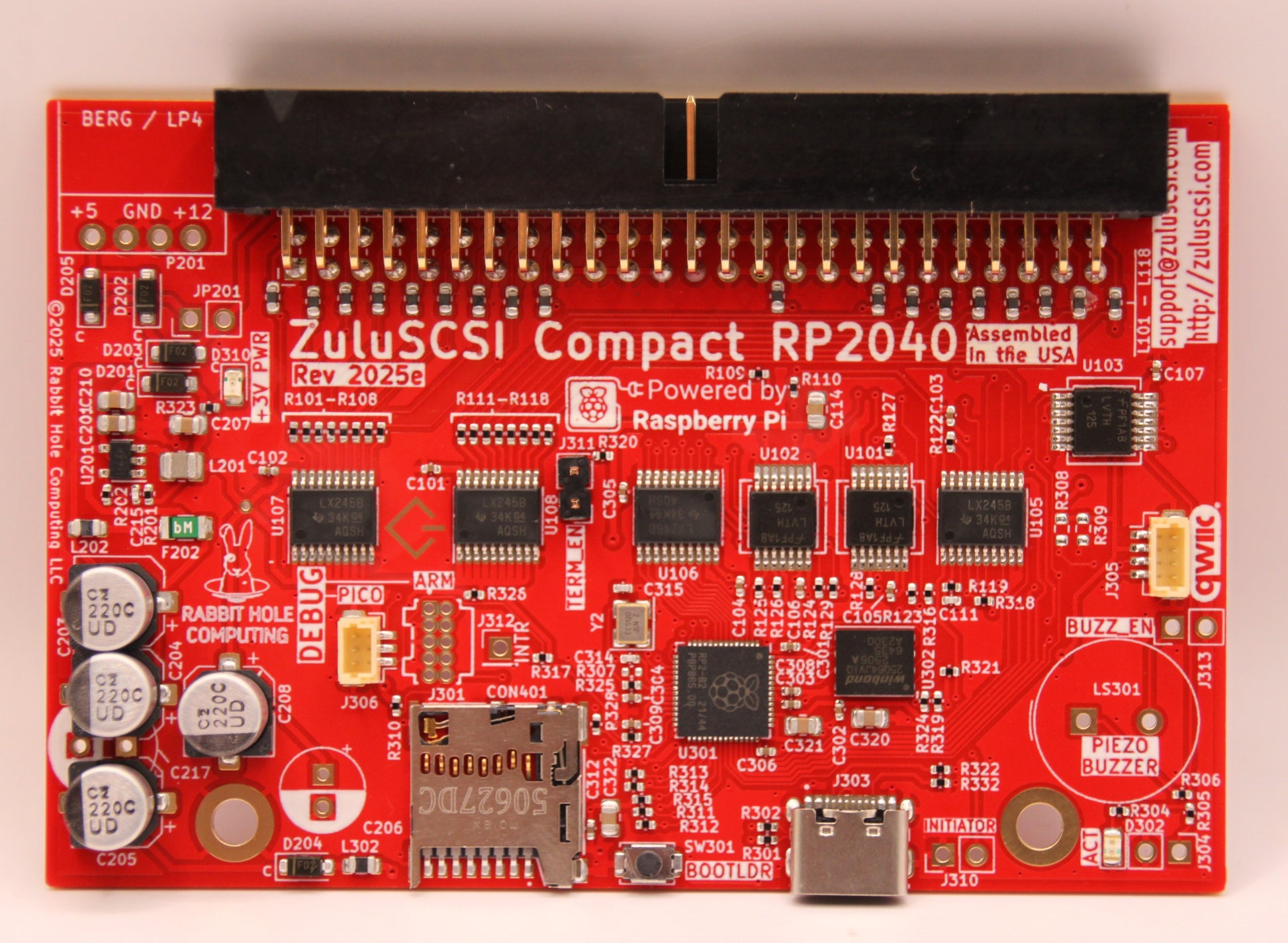

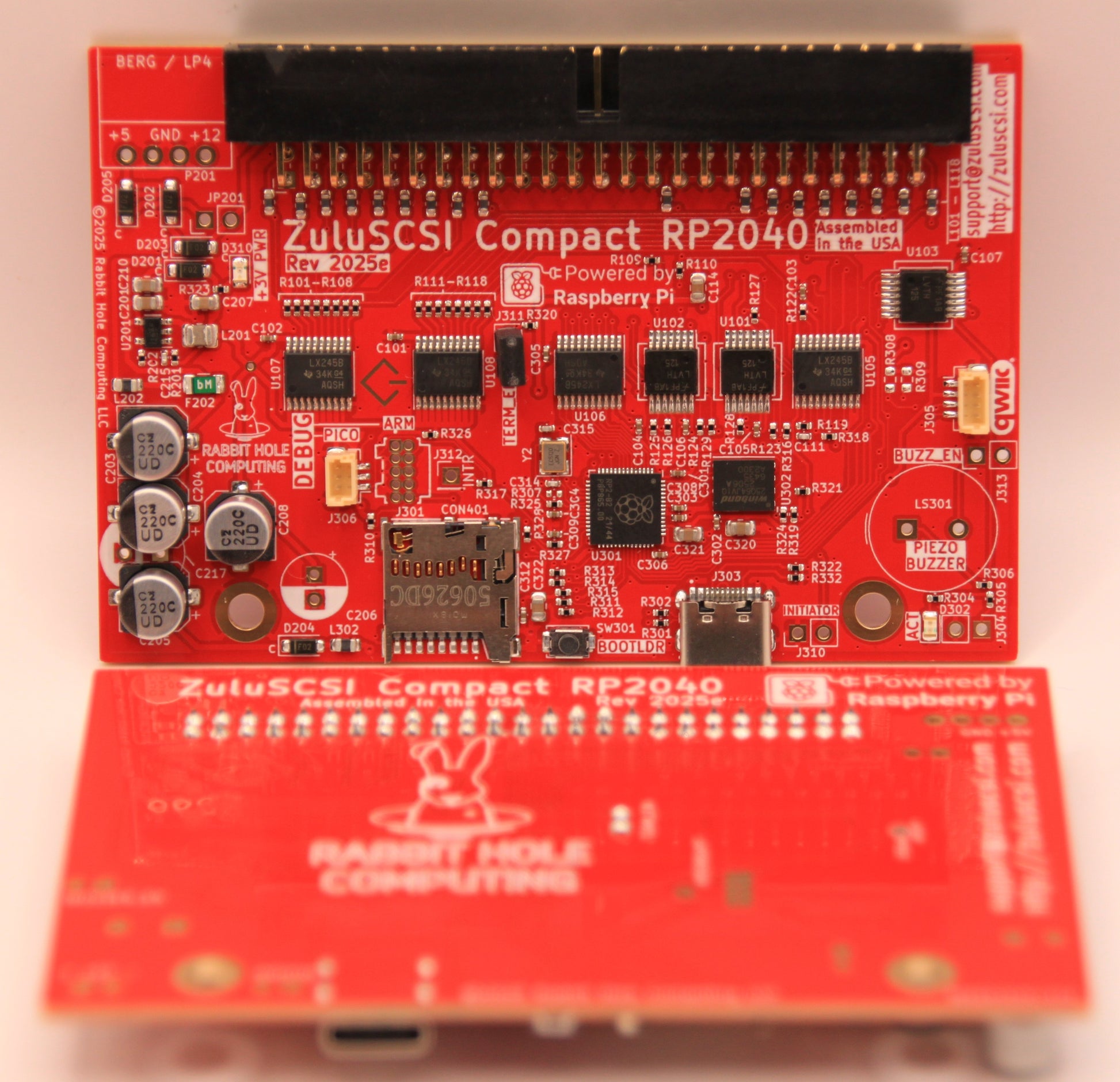

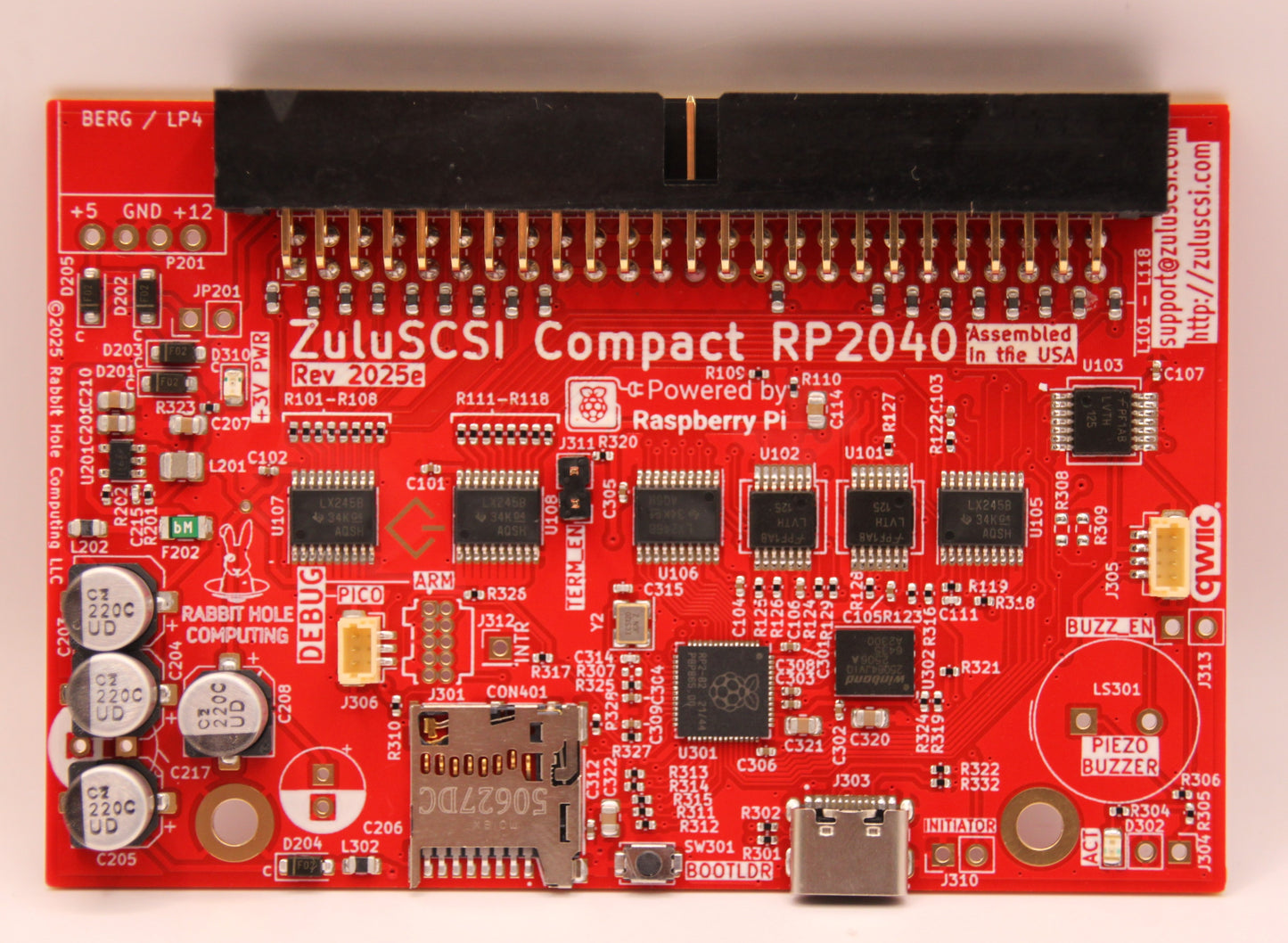

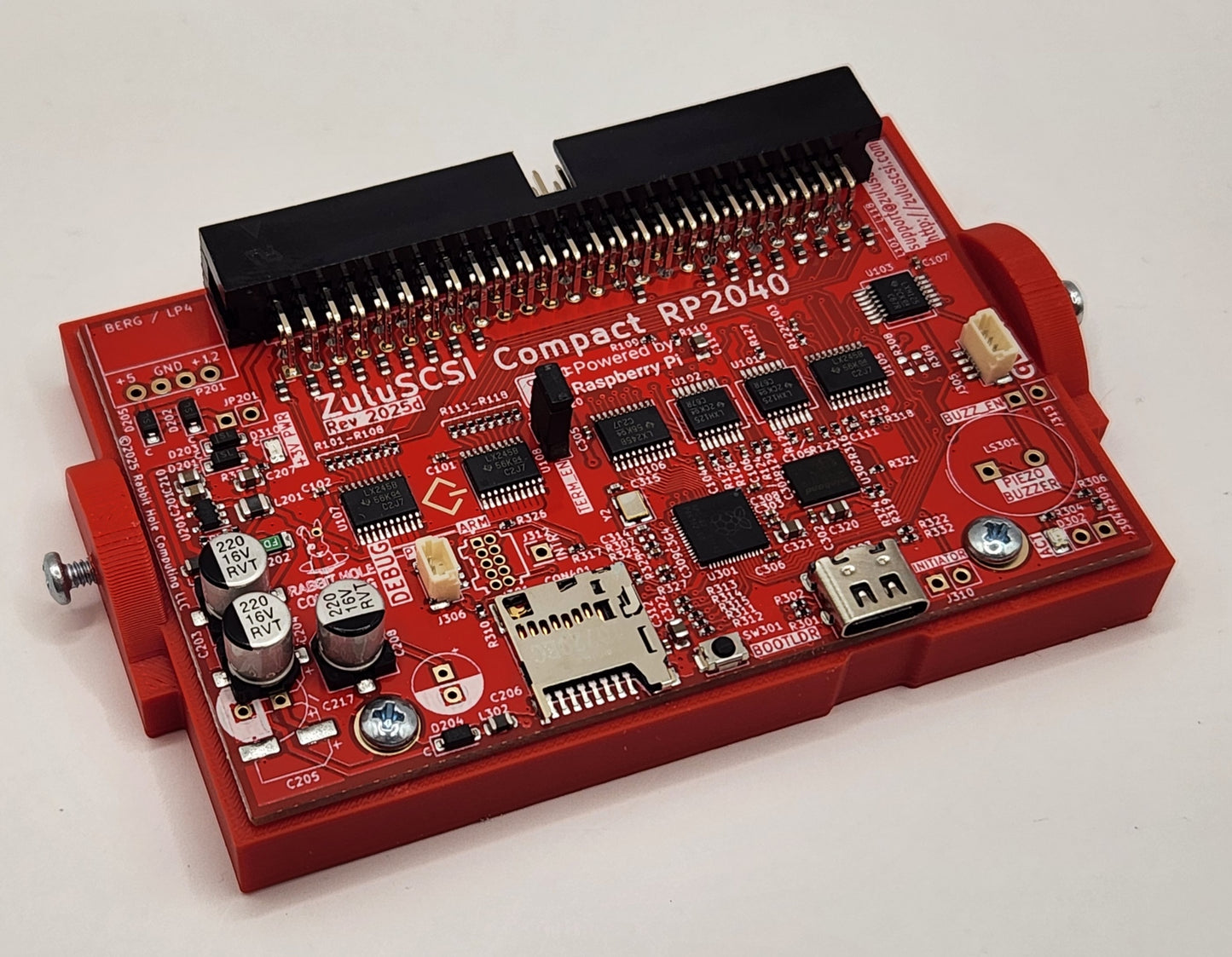

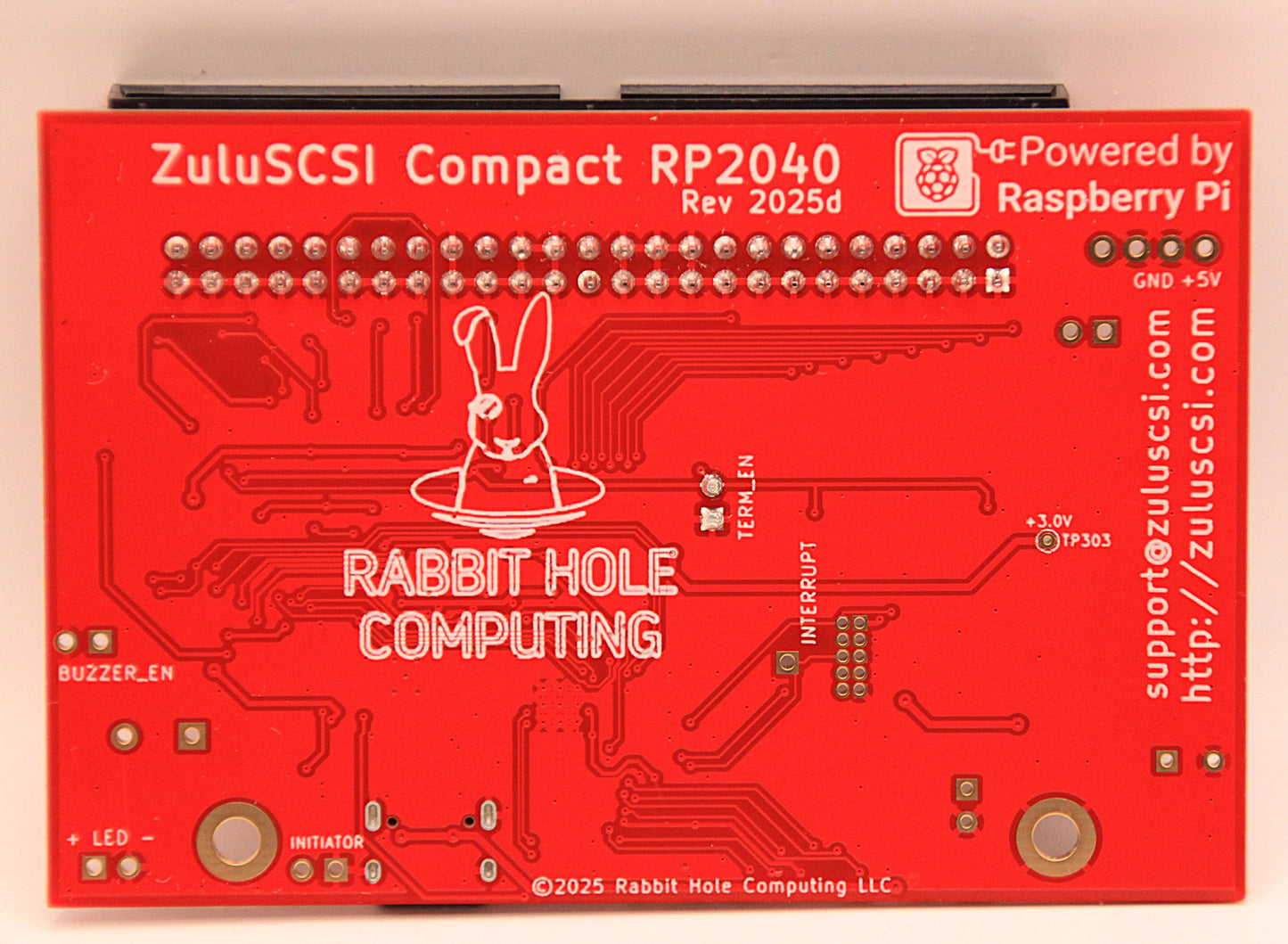

ZuluSCSI Compact RP2040 with USB-C
ZuluSCSI Compact RP2040 with USB-C
Regular price
$45.00 USD
Regular price
Sale price
$45.00 USD
Quantity
Couldn't load pickup availability
ZuluSCSI Compact RP2040 is a high-speed SCSI emulator that uses a microSD card to emulate up to seven SCSI devices if varying device types (HDD, CD-ROM, Zip, Tape) at the same time.
ZuluSCSI is easy to use. Hard drive and CD-ROM drive images are stored on a standard FAT32 or exFAT-formatted solid-state SD card. The ZuluSCSI firmware looks for file names which adhere to a simple but powerful naming convention. It presents each file as block devices/drives to the SCSI host. Each image file represents a SCSI drive.
ZuluSCSI is easy to use. Hard drive and CD-ROM drive images are stored on a standard FAT32 or exFAT-formatted solid-state SD card. The ZuluSCSI firmware looks for file names which adhere to a simple but powerful naming convention. It presents each file as block devices/drives to the SCSI host. Each image file represents a SCSI drive.
The ZuluSCSI firmware is open source.
ZuluSCSI Compact RP2040 board dimensions are 90mm by 60mm
Features

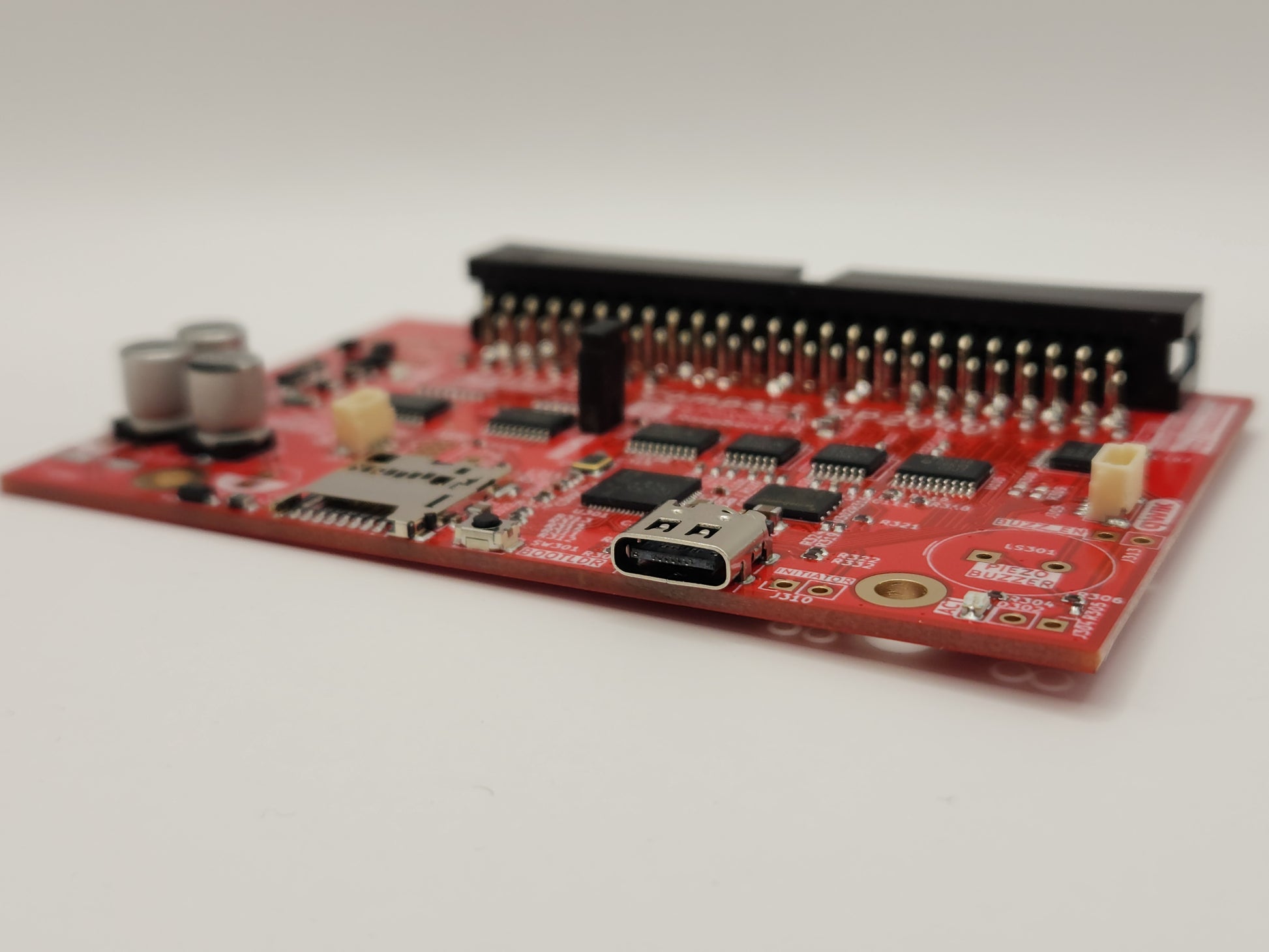

- USB-C - New as of revision 2025a+

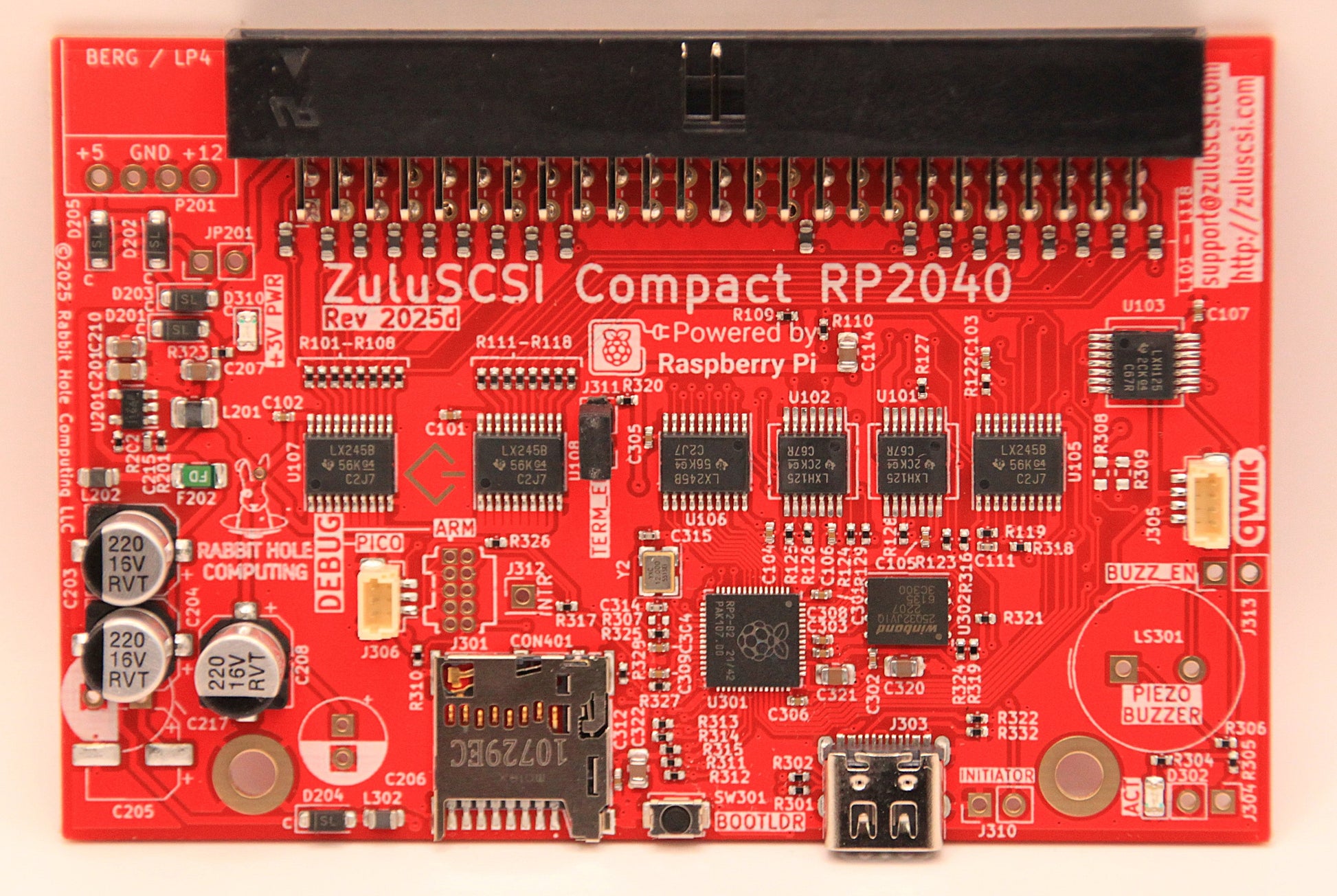

- 50-pin internal SCSI IDC connector
- Emulates up to 7 SCSI devices simultaneously, including CD-ROM
- Speaks both SCSI-1 and SCSI-2
- SCSI termination is enabled/disabled by a two-pin jumper header. The jumper is installed by default.
- SCSI Initiator mode can be enabled by installing a two-pin jumper header on the appropriate jumper header, and closing the jumper at power-on.
- Firmware upgrade simplicity; As easy as placing a file on the SD card
- Highly configurable using a text-based ini file, zuluscsi.ini
- External LED pin header for attaching remote LEDs
- Designed to be powered via SCSI termination power when provided by the host
- ZuluSCSI Compact RP2040 board dimensions are 90mm by 60mm
- ZuluSCSI firmware is open source
ZuluSCSI Compact RP2040 is powered by the Raspberry Pi Foundation's dual-core RP2040 microcontroller. ZuluSCSI RP2040 supports SCSI-2, synchronous and asynchronous transfers, with read speeds up to ten megabytes per second. A SCSI controller supporting FAST SCSI and synchronous mode is required to achieve maximum speeds.
ZuluSCSI can emulate up to seven SCSI devices of varying device types (HDD, CD-ROM, Zip, Tape) at the same time. ZuluSCSI is easy to use. Hard drive and CD-ROM drive images are stored on a standard FAT32 or exFAT-formatted solid-state SD card. The ZuluSCSI firmware looks for file names which adhere to a simple but powerful naming convention. It presents each file as block devices/drives to the SCSI host. Each image file represents a SCSI drive.
