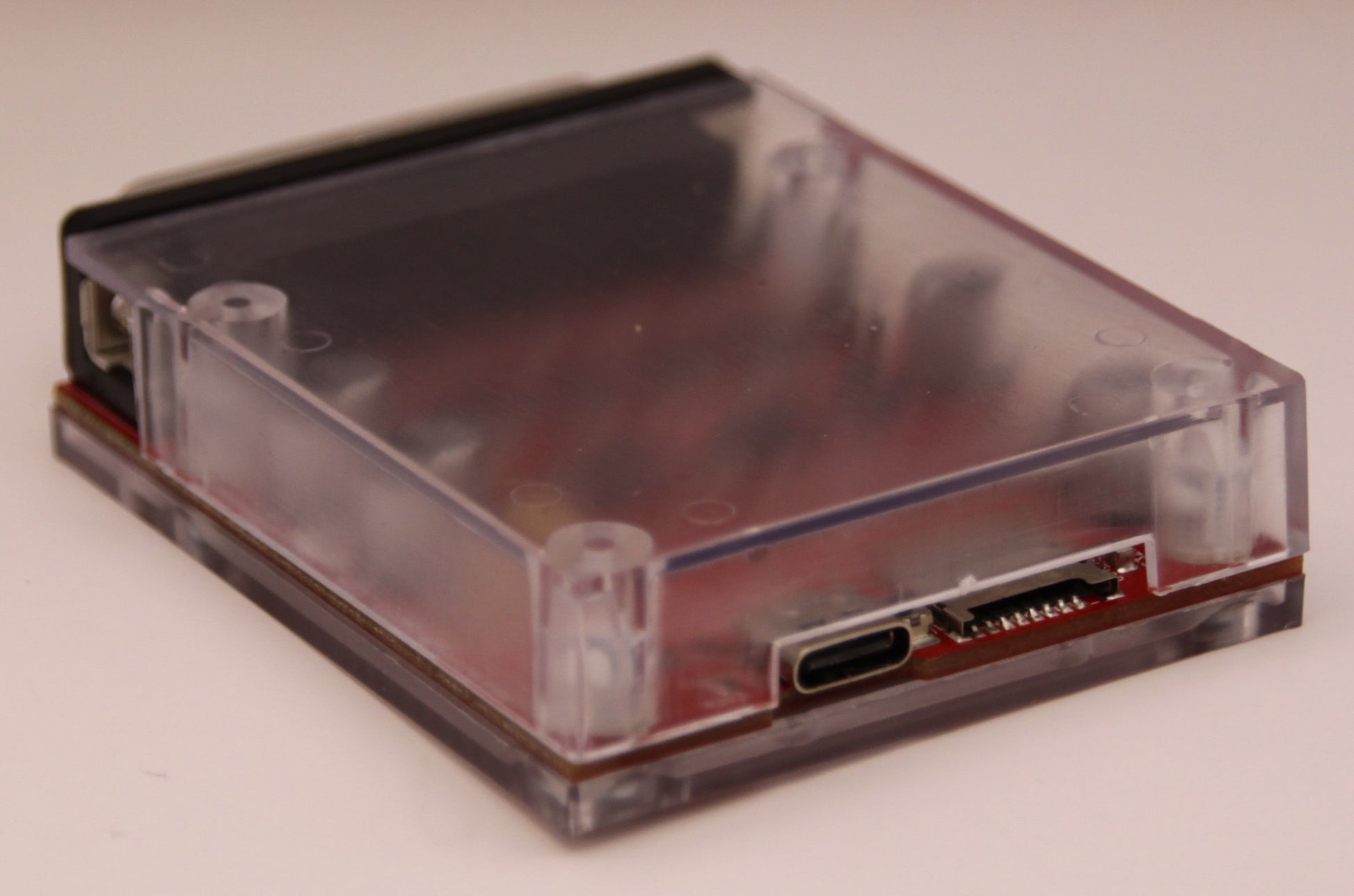

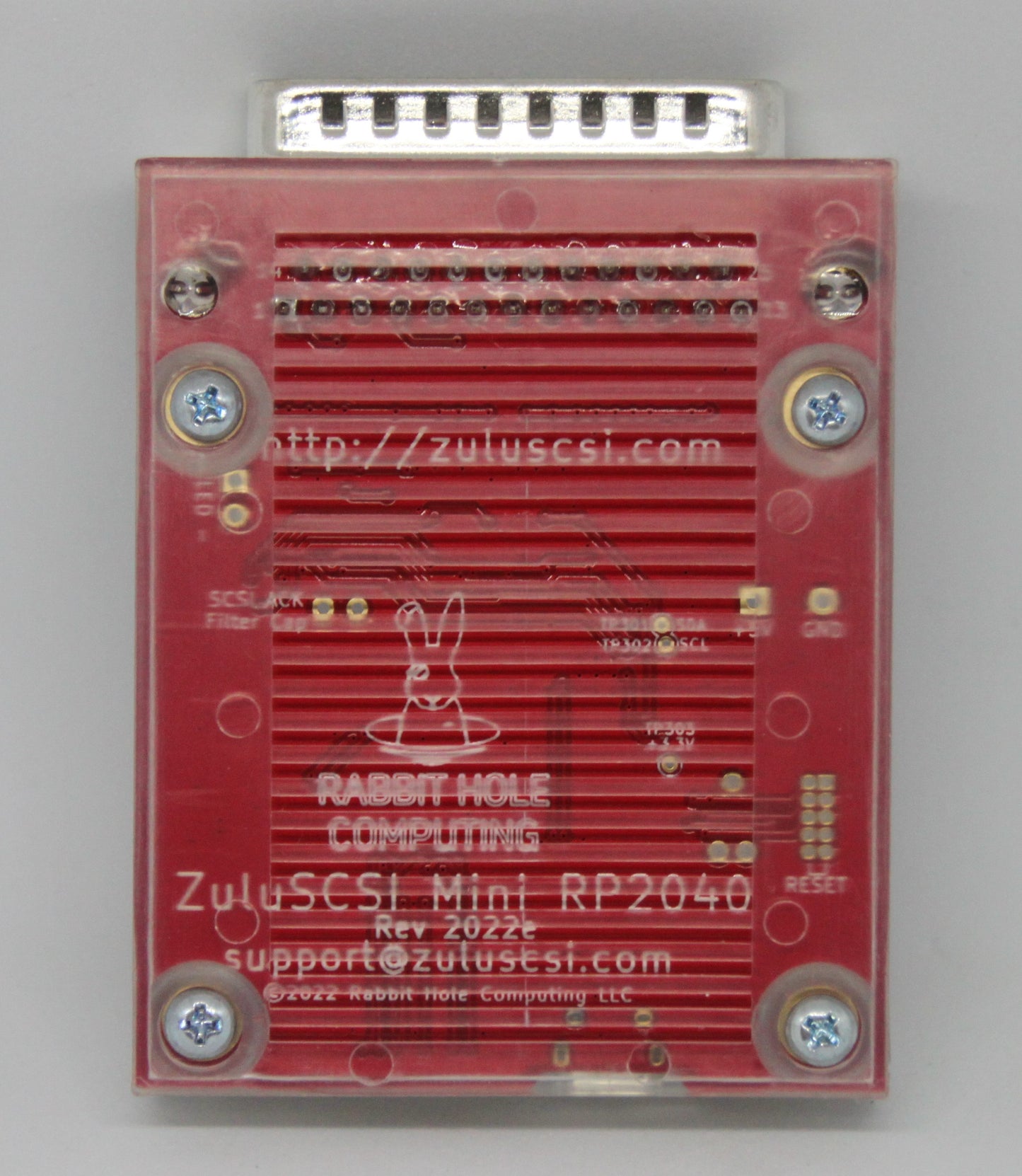

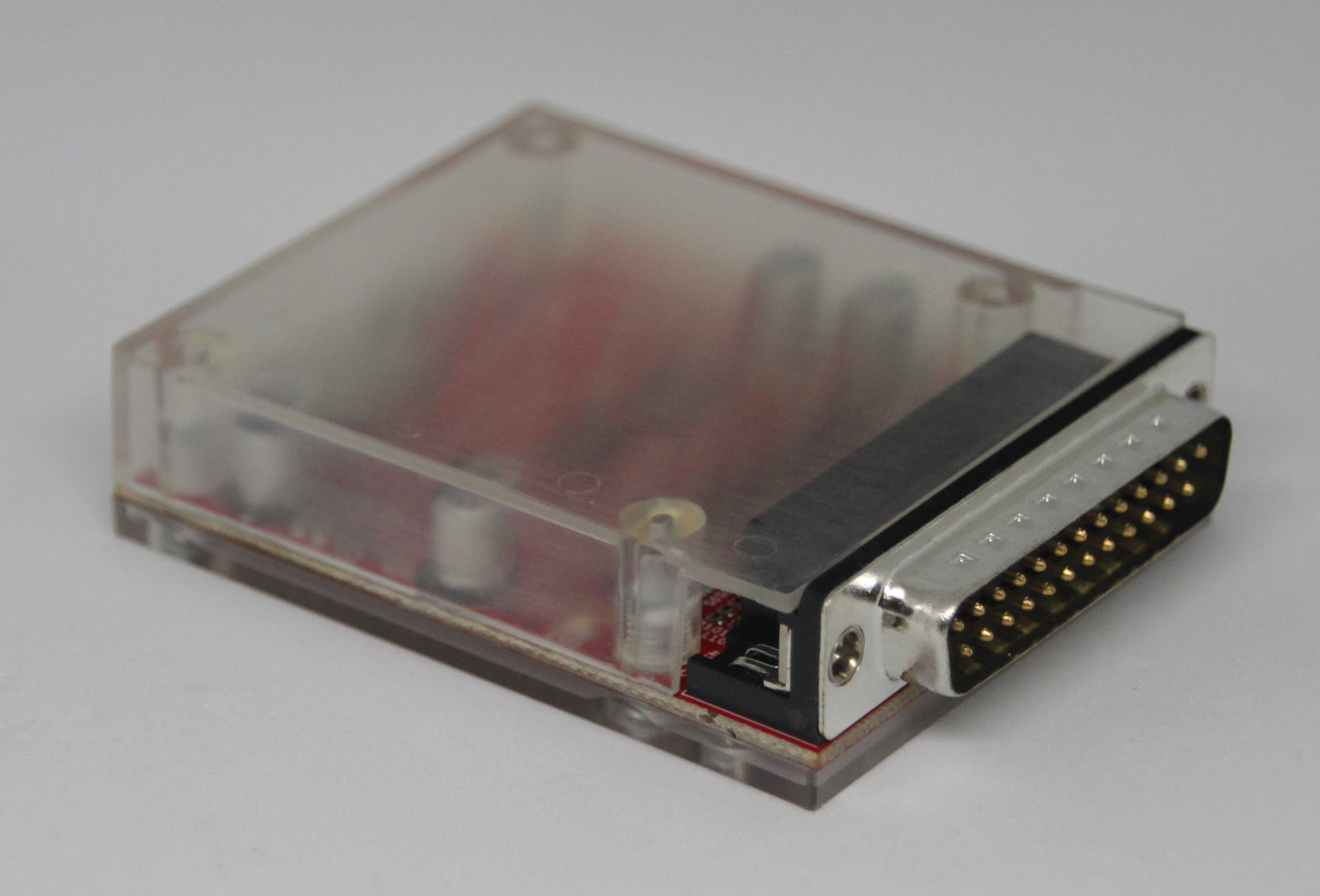

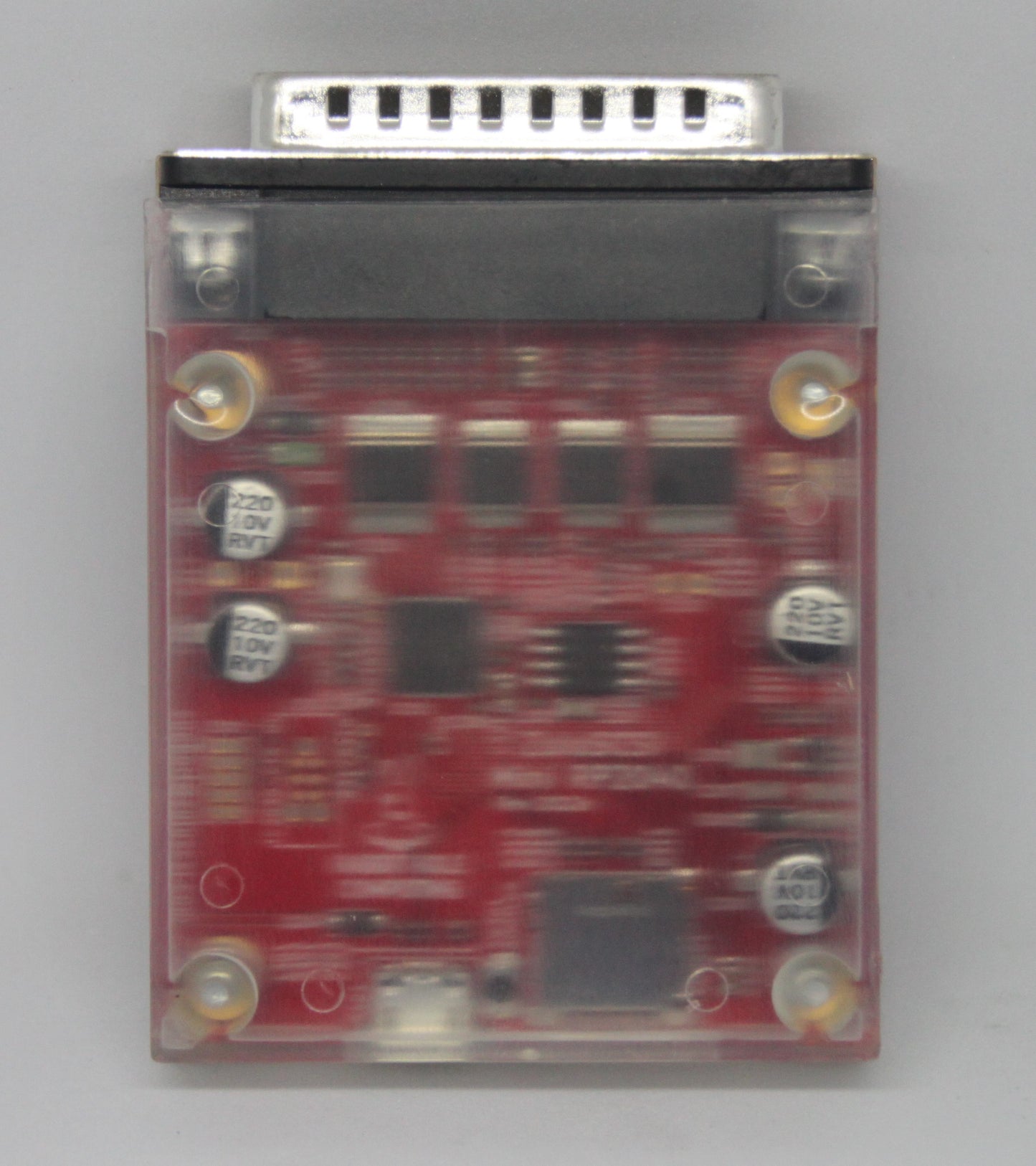

ZuluSCSI Mini RP2040 (DB25)

The ZuluSCSI Mini RP2040 is an ZuluSCSI variant designed for direct-attach use with any devices which have DB25 SCSI ports, such as most legacy Macintosh computers, and is physically the same form factor as SCSI2SD V5.5. It is equipped with a microSD card slot, a USB port, which can be used to provide power, as well as used for firmware recovery.

Hard drive and CD-ROM drive images are stored on a standard FAT32 or exFAT-formatted SD card. The ZuluSCSI firmware looks for file names which adhere to a simple but powerful naming convention, and presents them as the drives to the SCSI host. Each image file represents a SCSI drive.

Features

• Emulates up to 7 SCSI devices simultaneously, including CD-ROM

• Speaks both SCSI-1 and SCSI-2

• SCSI Termination is always-on

• Firmware upgrade simplicity; As easy as placing a file on the SD card.

• Highly configurable using a text-based ini file, zuluscsi.ini
  Designed to be powered via SCSI termination power, when provided by the host, or via the USB port.
